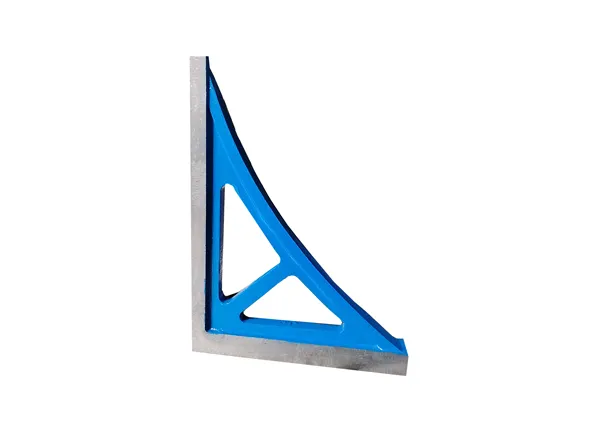

Cast Iron L-square Ruler

Cast Iron L-square Ruler

Next Product Inquire Now

    Material: HT200-250

    Specification: see attached form or customize

    Surface treatment: hand-scraped or finish-milling

    Foundry process: sand casting

    Painting: primer painting

    Surface coating: working surface covered with pickling oil and non-working surface covered with antirust paint

    Working temperature: (20±5)℃

    Precision grade: 1-2

    Packaging: plywood box


Inquire Now Next Product
Specification:

No.

Size（mm)

Verticality of measuring   surface towards datum

Flatness of measuring surface

Flatness of datum

Precision Degree(μm)

1

2

1

2

1

2

1

300×200

11

22

4

7

6


2

400×300

12

25

4

8

7


3

500×350

15

30

5

10

8


4

600×400

18

35

6

12

9

18

5

800×500

20

40

7

14

10

20

6

1000×630

25

50

8

16

12

25

7

1000×750

25

50

8

16

12

25
