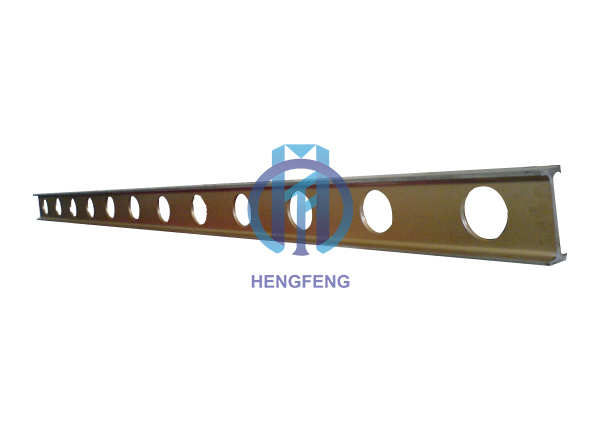

Aluminium Magnesium Alloy Parallel Ruler

Aluminium Magnesium Alloy Parallel Ruler

Next Product Inquire Now
Inquire Now Next Product
Specification:

Aluminium Magnesium Alloy Parallel Ruler

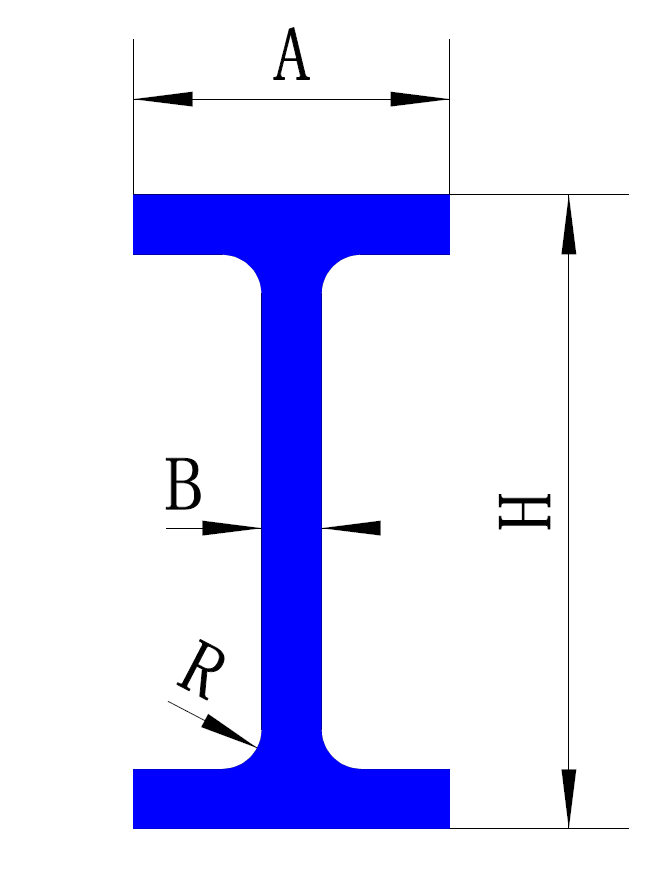

Specification (mm)

L

500

1000

1500

2000

2500

3000

3500

4000

5000

6000

H

60

60

100

100

150

150

150

150

175

175

A

30

30

40

40

80

80

80

80

80

80

B

6

6

6

8

8

8

8

10

10

10

R

4

4

4

6

6

6

6

8

10

10

Precision Grade

1

1

1

1

2

2

3

3

3

3

Beeline (mm)

0.006

0.01

0.015

0.018

0.044

0.048

0.112

0.128

0.16

0.20

Parallelism (mm)

0.008

0.016

0.022

0.027

0.066

0.072

0.168

0.26

0.24

0.30

Weight (kgs)

0.8

1.5

4.5

6

17.5

21

24.5

28

40

50
