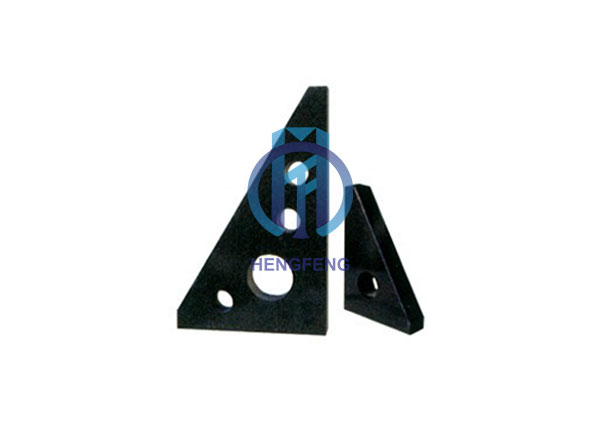

Granite L-square Ruler

Next Product Inquire Now

    Material: granite

    Standard: GB/T 6092-2004

    Specification: 100x63-1000x630mm or customize

    Hardness of the working surface: HS70

    Surface treatment: ground finish

    Precision grade: 00-0

    Packaging: plywood box


Specification:

Technical specification of granite L-square ruler:

Specification(mm)verticality of measuring surface towards datumFlatness of measuring surfaceFlatness of datum
Precision grade (um)
000000000
100×63241111
160×100241211
250×1602.551212
400×2503.5712.512
630×4004.591.5312.5
1000×6306122.551.55
