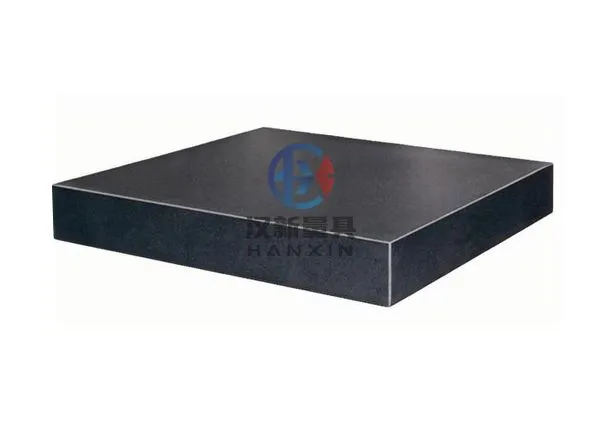

Granite Surface Plate

Next Product Inquire Now

    Material: granite

    Standard: GB/T 20428-2006

    Specification: The maximum workability is 3000mm in width and 6000mm in length or customize (special size is acceptable following customers’ requirement)

    Surface: T-slots, dovetail-shaped slots, holes, etc.

    Hardness of the working surface: HS70

    Surface treatment: ground finish

    Precision grade: 0-2

    Packaging: plywood box




Specification:

Technical specification of granite surface plate

No.Width X Length(mm)Precision Grade
012
 Flatness tolerance(um)
11000X750612.525
21000X1000713.527
31000X120071429
41000X150081632
51000X2000918.537
61500X2000102040
71500X25001122.545
81500X3000132550
92000X2000112244
102000X3000132753
112000X4000163264
122000X5000193775
132000X6000224386
142000X7000254997
152000X800027.554.5109
162500X300014.528.557
172500X400016.53367
182500X5000
3977
192500X6000
4488
202500X7000
5099
212500X8000
55110
223000X3000
30.561
233000X4000
3570
243000X5000
4080
253000X6000
4590.5
263000X7000
51101
273000X8000
56112.5
284000X4000
3978
294000X5000
4387
304000X6000
4896.5
314000X7000
53107
324000X8000
59117
