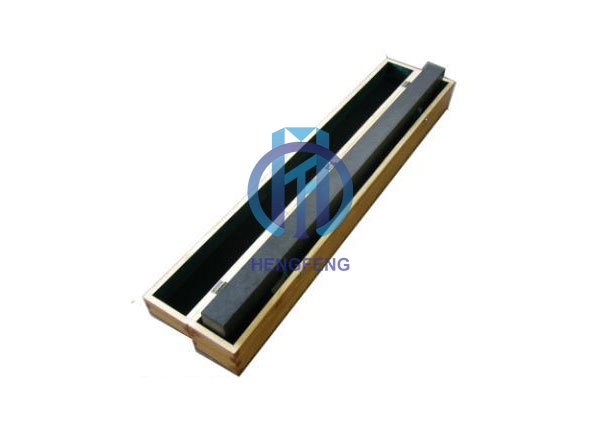

Granite Parallel Gauge

Next Product Inquire Now

    Material: granite

    Specification: 160x25x16-630x100x63mm or customize

    Hardness of the working surface: HS70

    Surface treatment: ground finish

    Precision grade: 00-0

    Packaging: plywood box


Specification:

Technical specification of granite parallel gauge:

Specification(mm)Flatness of working surfaceVerticality between working surfacesVerticality between side and working surface
Precision grade(um)
000000000
160×25×161.5320401.53
250×40×2524306024
400×63×4048408048
630×100×6361250100612
