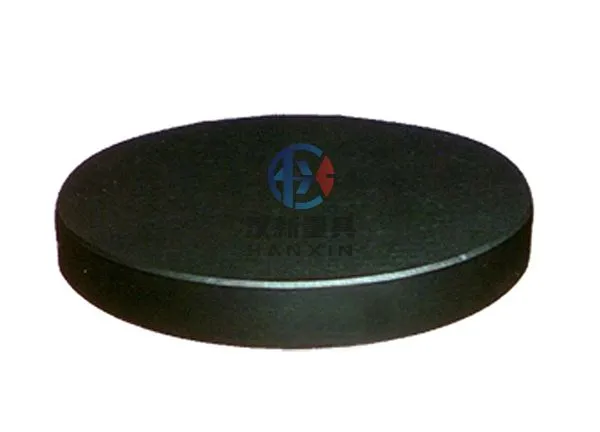

Granite Surface Plate

Next Product Inquire Now

Material: granite

Standard: GB/T 20428-2006

Specification: The maximum workability is 3000mm in width and 6000mm in length or customize (special size is acceptable following customers’requirement)

Surface: T-slots, dovetail-shaped slots, holes, etc.

Hardness of the working surface: HS70

Surface treatment: ground finish

Precision grade: 0-2

Packaging: plywood box

Inquire Now Next Product

Specification:

Technical specification of granite surface plate

No.	Width X Length（mm)	Precision Grade
		0	1	2
		Flatness tolerance(um)
1	1000X750	6	12.5	25
2	1000X1000	7	13.5	27
3	1000X1200	7	14	29
4	1000X1500	8	16	32
5	1000X2000	9	18.5	37
6	1500X2000	10	20	40
7	1500X2500	11	22.5	45
8	1500X3000	13	25	50
9	2000X2000	11	22	44
10	2000X3000	13	27	53
11	2000X4000	16	32	64
12	2000X5000	19	37	75
13	2000X6000	22	43	86
14	2000X7000	25	49	97
15	2000X8000	27.5	54.5	109
16	2500X3000	14.5	28.5	57
17	2500X4000	16.5	33	67
18	2500X5000		39	77
19	2500X6000		44	88
20	2500X7000		50	99
21	2500X8000		55	110
22	3000X3000		30.5	61
23	3000X4000		35	70
24	3000X5000		40	80
25	3000X6000		45	90.5
26	3000X7000		51	101
27	3000X8000		56	112.5
28	4000X4000		39	78
29	4000X5000		43	87
30	4000X6000		48	96.5
31	4000X7000		53	107
32	4000X8000		59	117
