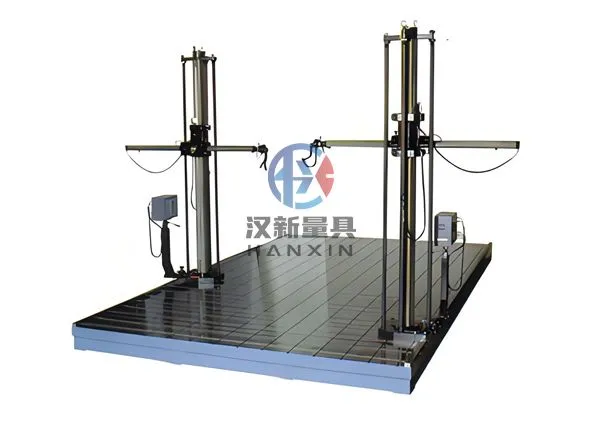

Cast Iron Surface Plate for CMM

Next Product Inquire Now

    Material: HT200-300 or granite

    Standard: GB/T22095-2008

    Specification: 750x1000-3000x8000mm or customize

    Surface: T-slot

    Hardness of the working surface: HB160-240

    Surface treatment: hand-scraped or finish milling

    Foundry process: sand casting or centrifugal casting

    Molding type: resin sand molding

    Painting: primer and face painting

    Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

    Surface flatness: Working, Reference

    Precision grade: 1-3

    Working temperature: (20±5)℃

    Packaging: plywood box


Specification:


For cast iron:

No.Width X Length(mm)Precision Grade
0123
Flatness Tolerance(um)
11000X750612.52550
21000X1000713.52754
31000X12007142958
41000X15008163263
51000X2000918.53774
61500X200010204080
71500X25001122.54590
81500X3000132550100
92000X2000 224488
102000X3000 2753106
112000X4000 3264127
122000X5000 3775150
132000X6000 4386172
142000X7000 4997194
152000X8000 54.5109218
162500X3000 28.557114
172500X4000 3367133
182500X5000
3977154
192500X6000
4488176
202500X7000
5099198
212500X8000
55110221
223000X3000
30.561122
233000X4000
3570140
243000X5000
4080160
253000X6000
4590.5181
263000X7000
51101203
273000X8000
56112.5225
284000X4000
3978156
294000X5000
4387174
304000X6000
4896.5193
314000X7000
53107213.5
324000X8000
59117235
