3D Welding Table D16

Next Product Inquire Now

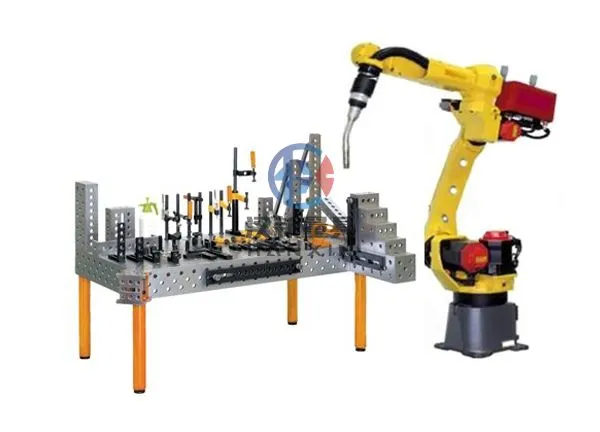

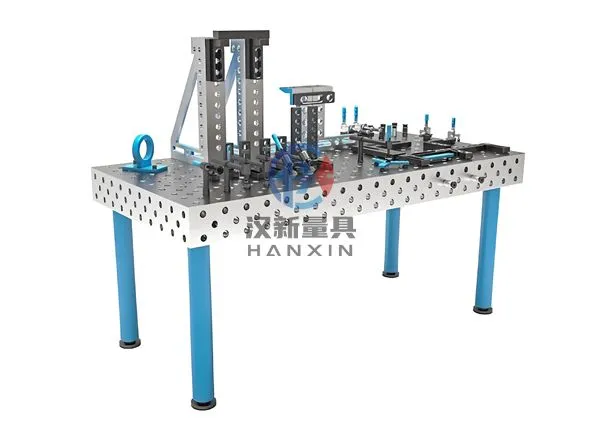

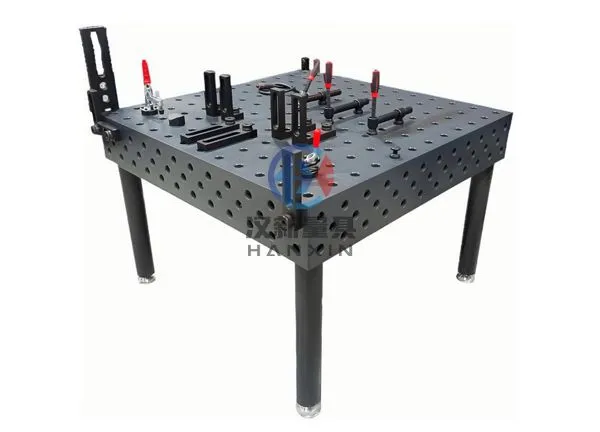

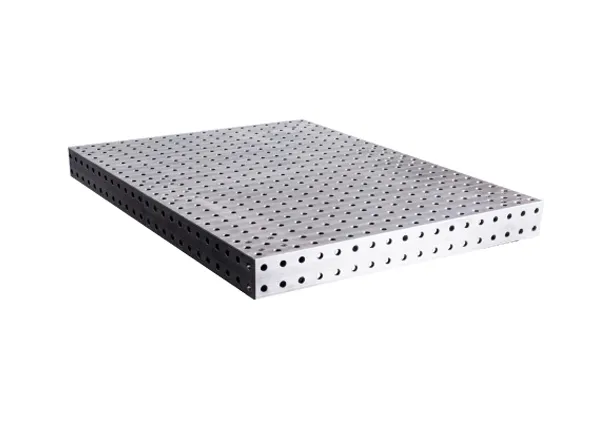

    3D Welding Table —— D16 Series

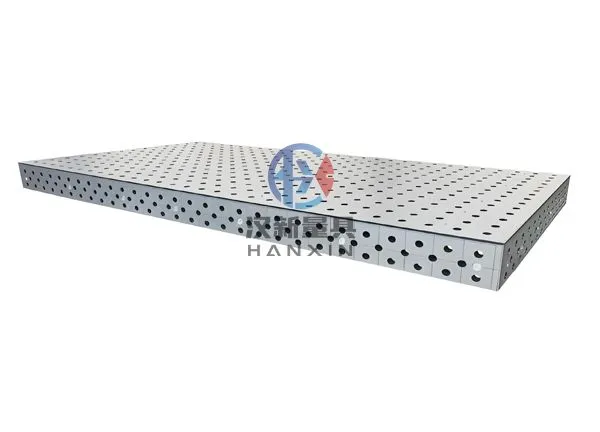

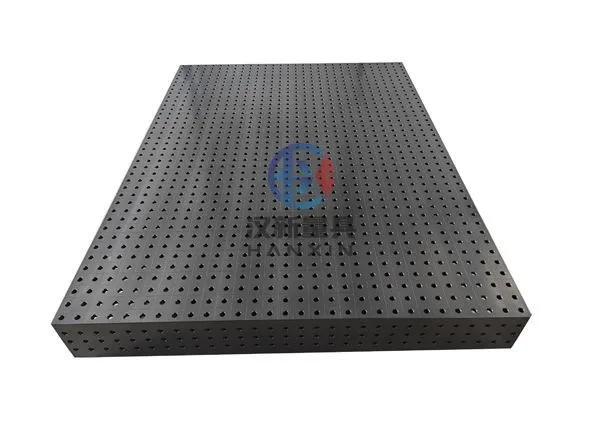

    3D Welding Table is designed for the manufacture of welded products; Made from high quality cast iron or steel, it has 5 precision machined working surfaces (1 top + 4 side surfaces). 3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.


Specification:

Material: steel welding table: Q355

               cast Iron welding table: HT 250 or HT300

Hardness: steel welding table: HV150-210

                 casting welding table: HB170-210

                 nitrated steel welding table: HV450-500

                 nitrated casting welding table: HV400-500

Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.

Hole diameter: 16mm

Grid spacing: 50±0.05mm

Precision: table horizontal precision:  ±0.1/1000mm

                table vertical precision:  ±0.1/200m

                drilling center accuracy: ±0.03mm

Hole pitch: 50±0.05mm

Perimeter ruler engraving: 1mm scale

Side surfaces height: 100mm or 200mm

Be reinforced on the underneath side by ribs

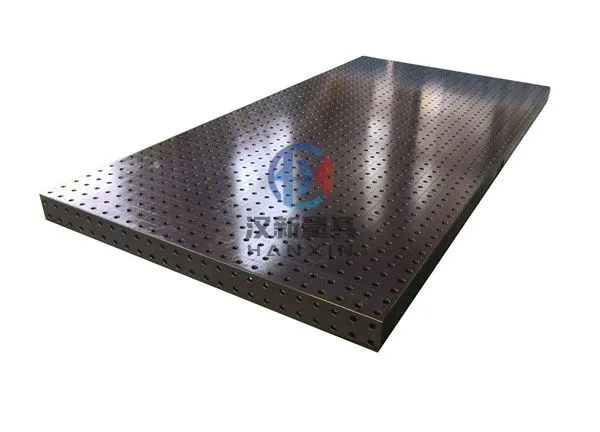

Surface treatment: standard/ nitrided

Loading capacity: 2 tons weight loading capacity.

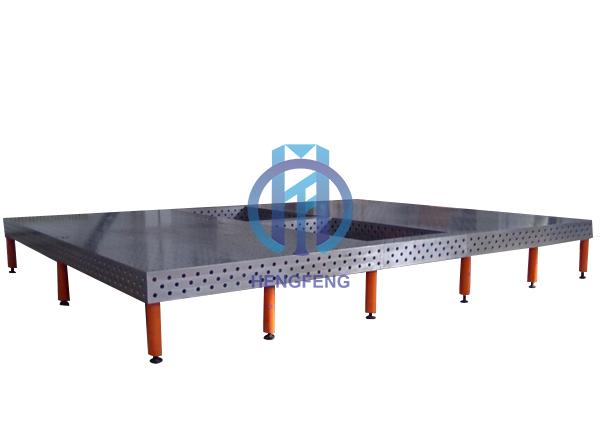

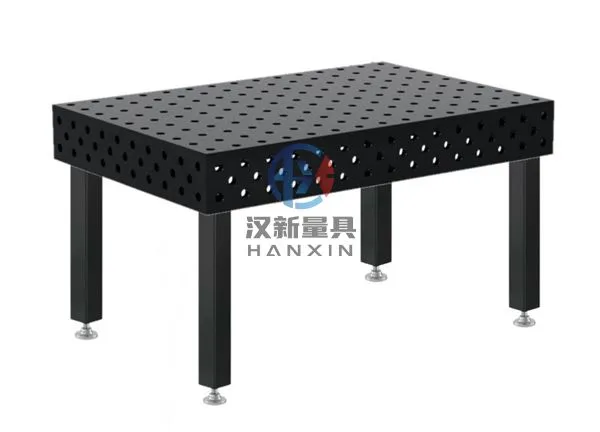

Supporting: legs or steel frame

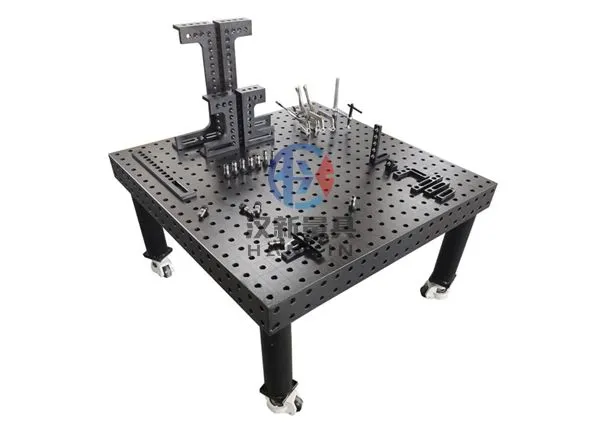

Fixtures:

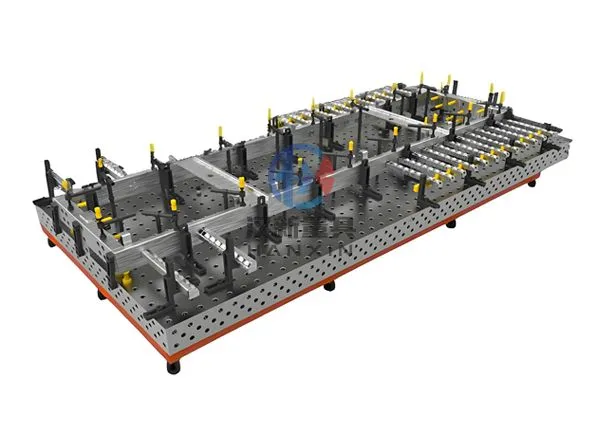

1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

2.Spare parts for locating

3. Tools for clamping and fixing

4. Spare parts for locking working pieces

5. Auxiliary tools



3D Welding Table (cast iron: HT 250, HT300)

No.SizeL*W*H(mm)ModelUnit Weight(kg)
11000x500x100HF16D-1005C80
21000x1000x100HF16D-1010C150
31200x800x100HF16D-1208C145
41200x1200x100HF16D-1212C220
51500x1000x100HF16D-1510C230
61500x1500x100HF16D-1515C340
72000x1000x100HF16D-2010C300
82400x1200x100HF16D-2412C400
91000x500x200HF16D-1005-2C90
101000x1000x200HF16D-1010-2C165
111200x800x200HF16D-1208-2C160
121200x1200x200HF16D-1212-2C240
131500x1000x200HF16D-1510-2C250
141500x1500x200HF16D-1515-2C370
152000x1000x200HF16D-2010-2C330
162400x1200x200HF16D-2412-2C440

Nitrided 3D Welding Table (Cast Iron: HT250, HT300)

No.SizeL*W*H(mm)ModelUnit Weight (kg)
11000x500x100HF16D-1005CN80
21000x1000x100HF16D-1010CN150
31200x800x100HF16D-1208CN145
41200x1200x100HF16D-1212CN220
51500x1000x100HF16D-1510CN230
61500x1500x100HF16D-1515CN340
72000x1000x100HF16D-2010CN300
82400x1200x100HF16D-2412CN400
91000x500x200HF16D-1005-2CN90
101000x1000x200HF16D-1010-2CN165
111200x800x200HF16D-1208-2CN160
121200x1200x200HF16D-1212-2CN240
131500x1000x200HF16D-1510-2CN250
141500x1500x200HF16D-1515-2CN370
152000x1000x200HF16D-2010-2CN330
162400x1200x200HF16D-2412-2CN440

3D Welding Table (Steel: Q355)

No.SizeL*W*H(mm)ModelUnit Weight (kg)
11000x500x100HF16D-1005S80
21000x1000x100HF16D-1010S140
31200x800x100HF16D-1208S140
41200x1200x100HF16D-1212S220
51500x1000x100HF16D-1510S230
61500x1500x100HF16D-1515S340
72000x1000x100HF16D-2010S300
82400x1200x100HF16D-2412S400
91000x500x200HF16D-1005-2S90
101000x1000x200HF16D-1010-2S165
111200x800x200HF16D-1208-2S160
121200x1200x200HF16D-1212-2S240
131500x1000x200HF16D-1510-2S250
141500x1500x200HF16D-1515-2S370
152000x1000x200HF16D-2010-2S330
162400x1200x200HF16D-2412-2S440

Nitrided 3D Welding Table (Steel: Q355)

No.SizeL*W*H(mm)ModelWeight (Kg)
11000x500x100HF16D-1005SN80
21000x1000x100HF16D-1010SN150
31200x800x100HF16D-1208SN145
41200x1200x100HF16D-1212SN220
51500x1000x100HF16D-1510SN230
61500x1500x100HF16D-1515SN340
72000x1000x100HF16D-2010SN300
82400x1200x100HF16D-2412SN400
91000x500x200HF16D-1005-2SN90
101000x1000x200HF16D-1010-2SN165
111200x800x200HF16D-1208-2SN160
121200x1200x200HF16D-1212-2SN240
131500x1000x200HF16D-1510-2SN250
141500x1500x200HF16D-1515-2SN370
152000x1000x200HF16D-2010-2SN330
162400x1200x200HF16D-2412-2SN440


Features OF 3D Welding Table:

• Superior Quality: Made from high-quality raw material, 3D welding table offers exceptional sturdiness and stability, providing a reliable surface for precise welding.

• 3D Surface Design: The innovative 3D surface design ensures that the workpieces stay firmly in place, preventing any unwanted movement during welding.

• Versatile Fixturing Options: Equipped with wide fixturing options, 3D welding table allows you to secure various workpieces securely, accommodating complex welding projects easily.

• Heat and Spatter Resistant: The cast iron construction has excellent heat and spatter resistance, ensuring the welding table remains in pristine condition over prolonged use.

3D Welding Table Applications:

Aerospace Industry

Fabrication Projects

Automotive Repairs

Industrial Maintenance

Machine Manufacturing
