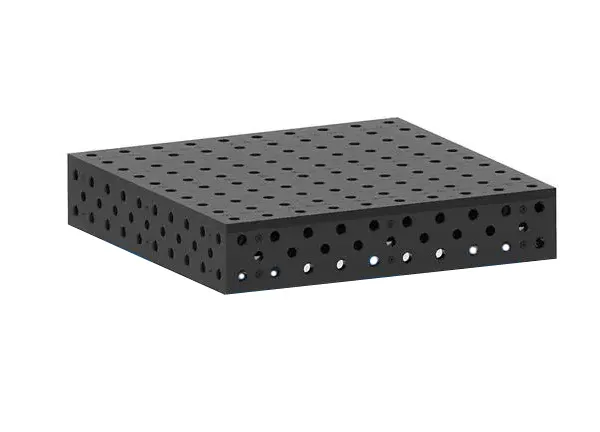

3D Welding Table Nitrided Finish

Next Product Inquire Now

    3D Welding Table is designed for the manufacture of welded products; Made from high quality raw material, it has 5 precision machined working surfaces (1 top + 4 side surfaces). 3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.

Specification:

Material: steel welding table: Q355

               cast Iron welding table: HT 250 or HT300

Hardness: steel welding table: HV150-210

                 casting welding table: HB170-210

                 nitrated steel welding table: HV450-500

                 nitrated casting welding table: HV400-500

Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.

Hole diameter: 16mm and 28mm (drilled and milled hole.)

Grid spacing: D16 system: 50±0.05mm; D28 system: 100±0.05mm

Precision: table horizontal precision:  ±0.1/1000mm

                table vertical precision:  ±0.1/200mm

                drilling center accuracy: ±0.03mm

Hole pitch: 50±0.05mm; D28 system: 100±0.05mm

Perimeter ruler engraving: 1mm scale

Side surfaces height: D16 system: 100mm or 200mm; D28 system: 200mm

Be reinforced on the underneath side by ribs

Surface treatment: standard/ nitrided

Loading capacity: 2 tons weight loading capacity.

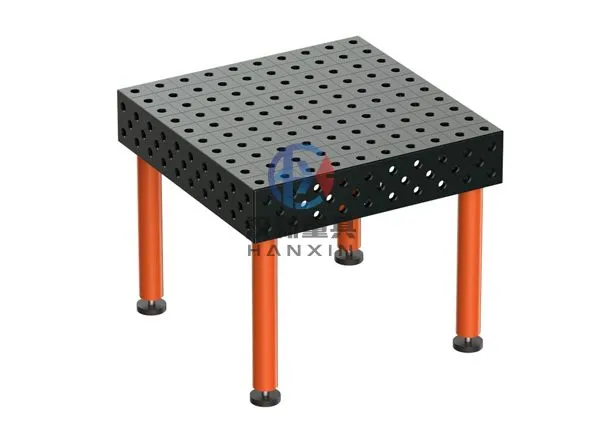

Supporting: legs or steel frame

Fixtures:

1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

2.Spare parts for locating

3. Tools for clamping and fixing

4. Spare parts for locking working pieces

5. Auxiliary tools


3D Welding Table —— D28 Series

Nitrided 3D Welding Table (Cast Iron: HT250, HT300)

No.Size L*W*H (mm)ModelWeight (kg)
11000x1000x200HF28D-1010CN350
21200x1200x200HF28D-1212CN500
31500x1000x200HF28D-1510CN520
41500x1500x200HF28D-1515CN790
52000x1000x200HF28D-2010CN700
62000x1500x200HF28D-2015CN950
72400x1200x200HF28D-2412CN900
83000x1500x200HF28D-3015CN1550
93000x2000x200HF28D-3020CN2100
104000x2000x200HF28D-4020CN2800

Nitrided 3D Welding Table (Steel: Q355)

No.Size L*W*H (mm)ModelWeight (kg)
11000x1000x200HF28D-1010SN360
21200x1200x200HF28D-1212SN500
31500x1000x200HF28D-1510SN520
41500x1500x200HF28D-1515SN700
52000x1000x200HF28D-2010SN600
62000x1500x200HF28D-2015SN950
72400x1200x200HF28D-2412SN900
83000x1500x200HF28D-3015SN1400
93000x2000x200HF28D-3020SN1800
104000x2000x200HF28D-4020SN2300

3D Welding Table —— D16 Series

Nitrided 3D Welding Table (Cast Iron: HT250, HT300)

No.SizeL*W*H(mm)ModelUnit Weight (kg)
11000x500x100HF16D-1005CN80
21000x1000x100HF16D-1010CN150
31200x800x100HF16D-1208CN145
41200x1200x100HF16D-1212CN220
51500x1000x100HF16D-1510CN230
61500x1500x100HF16D-1515CN340
72000x1000x100HF16D-2010CN300
82400x1200x100HF16D-2412CN400
91000x500x200HF16D-1005-2CN90
101000x1000x200HF16D-1010-2CN165
111200x800x200HF16D-1208-2CN160
121200x1200x200HF16D-1212-2CN240
131500x1000x200HF16D-1510-2CN250
141500x1500x200HF16D-1515-2CN370
152000x1000x200HF16D-2010-2CN330
162400x1200x200HF16D-2412-2CN440

Nitrided 3D Welding Table (Steel: Q355)

No.SizeL*W*H(mm)ModelWeight (Kg)
11000x500x100HF16D-1005SN80
21000x1000x100HF16D-1010SN150
31200x800x100HF16D-1208SN145
41200x1200x100HF16D-1212SN220
51500x1000x100HF16D-1510SN230
61500x1500x100HF16D-1515SN340
72000x1000x100HF16D-2010SN300
82400x1200x100HF16D-2412SN400
91000x500x200HF16D-1005-2SN90
101000x1000x200HF16D-1010-2SN165
111200x800x200HF16D-1208-2SN160
121200x1200x200HF16D-1212-2SN240
131500x1000x200HF16D-1510-2SN250
141500x1500x200HF16D-1515-2SN370
152000x1000x200HF16D-2010-2SN330
162400x1200x200HF16D-2412-2SN440



*Other sizes can be manufactured as per requirement.

Features of Cast Iron Welding Table:

• Superior Quality: Made from high-quality raw material, 3D welding table offers exceptional sturdiness and stability, providing a reliable surface for precise welding.

• 3D Surface Design: The innovative 3D surface design ensures that the workpieces stay firmly in place, preventing any unwanted movement during welding.

• Versatile Fixturing Options: Equipped with wide fixturing options, 3D welding table allows you to secure various workpieces securely, accommodating complex welding projects easily.

• Heat and Spatter Resistant: The cast iron construction has excellent heat and spatter resistance, ensuring the welding table remains in pristine condition over prolonged use.

• Easy Cleanup: Due to its smooth surface, cleaning up after welding projects becomes very easy, saving you valuable time and effort.

3D Welding Table Applications:

Fabrication Projects

Metal Processing

Industrial Maintenance

Machine Manufacturing

Automotive Repairs

Aerospace Industry
