D28 Steel 3D Welding Table

Next Product Inquire Now

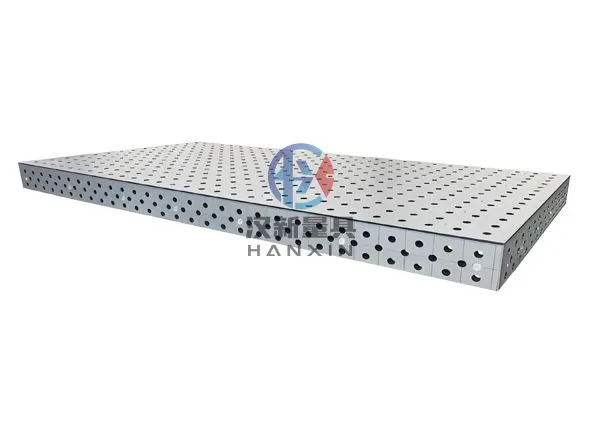

3D Welding Table is designed for the manufacture of welded products; Made from high quality cast iron or steel, it has 5 precision machined working surfaces (1 top + 4 side surfaces). 3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.

Inquire Now Next Product

Specification:

Material: steel welding table: Q355

cast Iron welding table: HT 250 or HT300

Hardness: steel welding table: HV150-210

casting welding table: HB170-210

nitrated steel welding table: HV450-500

nitrated casting welding table: HV400-500

Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.

Hole diameter: 16mm

Grid spacing: 50±0.05mm

Precision: table horizontal precision: ±0.1/1000mm

table vertical precision: ±0.1/200m

drilling center accuracy: ±0.03mm

Hole pitch: 50±0.05mm

Perimeter ruler engraving: 1mm scale

Side surfaces height: 100mm or 200mm

Be reinforced on the underneath side by ribs

Surface treatment: standard/ nitrided

Loading capacity: 2 tons weight loading capacity.

Supporting: legs or steel frame

Fixtures:

1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

2.Spare parts for locating

3. Tools for clamping and fixing

4. Spare parts for locking working pieces

5. Auxiliary tools

3D Welding Table (Steel: Q355)

No.	SizeLWH(mm)	Model	Unit Weight (kg)
1	1000x500x100	HFD161005S	80
2	1000x1000x100	HFD161010S	140
3	1200x800x100	HFD161208S	140
4	1200x1200x100	HFD161212S	220
5	1500x1000x100	HFD161510S	230
6	1500x1500x100	HFD161515S	340
7	2000x1000x100	HFD162010S	300
8	2400x1200x100	HFD162412S	400
9	1000x500x200	HFD161005-2S	90
10	1000x1000x200	HFD161010-2S	165
11	1200x800x200	HFD161208-2S	160
12	1200x1200x200	HFD161212-2S	240
13	1500x1000x200	HFD161510-2S	250
14	1500x1500x200	HFD161515-2S	370
15	2000x1000x200	HFD162010-2S	330
16	2400x1200x200	HFD162412-2S	440

Nitrided 3D Welding Table (Steel: Q355)

No.	SizeLWH(mm)	Model	Weight (Kg)
1	1000x500x100	HFD161005SN	80
2	1000x1000x100	HFD161010SN	150
3	1200x800x100	HFD161208SN	145
4	1200x1200x100	HFD161212SN	220
5	1500x1000x100	HFD161510SN	230
6	1500x1500x100	HFD161515SN	340
7	2000x1000x100	HFD162010SN	300
8	2400x1200x100	HFD162412SN	400
9	1000x500x200	HFD161005-2SN	90
10	1000x1000x200	HFD161010-2SN	165
11	1200x800x200	HFD161208-2SN	160
12	1200x1200x200	HFD161212-2SN	240
13	1500x1000x200	HFD161510-2SN	250
14	1500x1500x200	HFD161515-2SN	370
15	2000x1000x200	HFD162010-2SN	330
16	2400x1200x200	HFD162412-2SN	440

*Other sizes can be manufactured as per requirement.

Features OF 3D Welding Table:

• Superior Quality: Made from high-quality raw material, 3D welding table offers exceptional sturdiness and stability, providing a reliable surface for precise welding.

• 3D Surface Design: The innovative 3D surface design ensures that the workpieces stay firmly in place, preventing any unwanted movement during welding.

• Versatile Fixturing Options: Equipped with wide fixturing options, 3D welding table allows you to secure various workpieces securely, accommodating complex welding projects easily.

• Heat and Spatter Resistant: The cast iron construction has excellent heat and spatter resistance, ensuring the welding table remains in pristine condition over prolonged use.

• Easy Cleanup: Due to its smooth surface, cleaning up after welding projects becomes very easy.

3D Welding Table Applications:

Aerospace Industry

Fabrication Projects

Automotive Repairs

Industrial Maintenance

Machine Manufacturing
