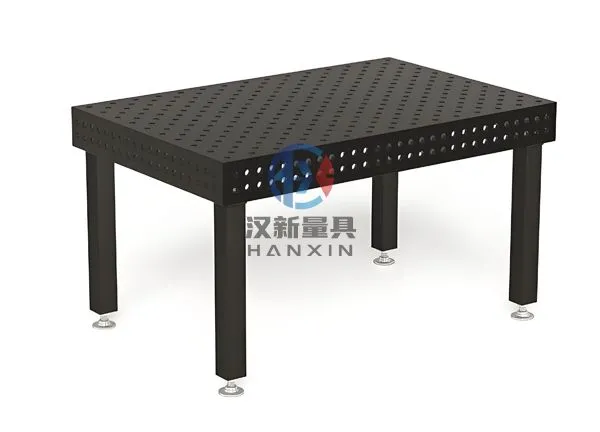

Modular Welding Table is designed for the manufacture of welded products; Made from high quality raw material, it has 5 precision machined working surfaces (1 top + 4 side surfaces). 3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.
Material: steel welding table: Q355
cast Iron welding table: HT 250 or HT300
Hardness: steel welding table: HV150-210
casting welding table: HB170-210
nitrated steel welding table: HV450-500
nitrated casting welding table: HV400-500
Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.
Hole diameter: 16mm and 28mm (drilled and milled hole.)
Grid spacing: D16 system: 50±0.05mm; D28 system: 100±0.05mm
Precision: table horizontal precision: ±0.1/1000mm
table vertical precision: ±0.1/200mm
drilling center accuracy: ±0.03mm
Hole pitch: 50±0.05mm; D28 system: 100±0.05mm
Perimeter ruler engraving: 1mm scale
Side surfaces height: D16 system: 100mm or 200mm; D28 system: 200mm
Be reinforced on the underneath side by ribs
Surface treatment: standard/ nitrided
Loading capacity: 2 tons weight loading capacity.
Supporting: legs or steel frame
Fixtures:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2.Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools
3D Welding Table —— D28 Series
Nitrided 3D Welding Table (Cast Iron: HT250, HT300)
No. | Size L*W*H (mm) | Model | Weight (kg) |
1 | 1000x1000x200 | HF28D-1010CN | 350 |
2 | 1200x1200x200 | HF28D-1212CN | 500 |
3 | 1500x1000x200 | HF28D-1510CN | 520 |
4 | 1500x1500x200 | HF28D-1515CN | 790 |
5 | 2000x1000x200 | HF28D-2010CN | 700 |
6 | 2000x1500x200 | HF28D-2015CN | 950 |
7 | 2400x1200x200 | HF28D-2412CN | 900 |
8 | 3000x1500x200 | HF28D-3015CN | 1550 |
9 | 3000x2000x200 | HF28D-3020CN | 2100 |
10 | 4000x2000x200 | HF28D-4020CN | 2800 |
Nitrided 3D Welding Table (Steel: Q355)
No. | Size L*W*H (mm) | Model | Weight (kg) |
1 | 1000x1000x200 | HF28D-1010SN | 360 |
2 | 1200x1200x200 | HF28D-1212SN | 500 |
3 | 1500x1000x200 | HF28D-1510SN | 520 |
4 | 1500x1500x200 | HF28D-1515SN | 700 |
5 | 2000x1000x200 | HF28D-2010SN | 600 |
6 | 2000x1500x200 | HF28D-2015SN | 950 |
7 | 2400x1200x200 | HF28D-2412SN | 900 |
8 | 3000x1500x200 | HF28D-3015SN | 1400 |
9 | 3000x2000x200 | HF28D-3020SN | 1800 |
10 | 4000x2000x200 | HF28D-4020SN | 2300 |
3D Welding Table —— D16 Series
Nitrided 3D Welding Table (Cast Iron: HT250, HT300)
No. | SizeL*W*H(mm) | Model | Unit Weight (kg) |
1 | 1000x500x100 | HF16D-1005CN | 80 |
2 | 1000x1000x100 | HF16D-1010CN | 150 |
3 | 1200x800x100 | HF16D-1208CN | 145 |
4 | 1200x1200x100 | HF16D-1212CN | 220 |
5 | 1500x1000x100 | HF16D-1510CN | 230 |
6 | 1500x1500x100 | HF16D-1515CN | 340 |
7 | 2000x1000x100 | HF16D-2010CN | 300 |
8 | 2400x1200x100 | HF16D-2412CN | 400 |
9 | 1000x500x200 | HF16D-1005-2CN | 90 |
10 | 1000x1000x200 | HF16D-1010-2CN | 165 |
11 | 1200x800x200 | HF16D-1208-2CN | 160 |
12 | 1200x1200x200 | HF16D-1212-2CN | 240 |
13 | 1500x1000x200 | HF16D-1510-2CN | 250 |
14 | 1500x1500x200 | HF16D-1515-2CN | 370 |
15 | 2000x1000x200 | HF16D-2010-2CN | 330 |
16 | 2400x1200x200 | HF16D-2412-2CN | 440 |
Nitrided 3D Welding Table (Steel: Q355)
No. | SizeL*W*H(mm) | Model | Weight (Kg) |
1 | 1000x500x100 | HF16D-1005SN | 80 |
2 | 1000x1000x100 | HF16D-1010SN | 150 |
3 | 1200x800x100 | HF161D-208SN | 145 |
4 | 1200x1200x100 | HF16D-1212SN | 220 |
5 | 1500x1000x100 | HF16D-1510SN | 230 |
6 | 1500x1500x100 | HF16D-1515SN | 340 |
7 | 2000x1000x100 | HF16D-2010SN | 300 |
8 | 2400x1200x100 | HF16D-2412SN | 400 |
9 | 1000x500x200 | HF16D-1005-2SN | 90 |
10 | 1000x1000x200 | HF16D-1010-2SN | 165 |
11 | 1200x800x200 | HF16D-1208-2SN | 160 |
12 | 1200x1200x200 | HF16D-1212-2SN | 240 |
13 | 1500x1000x200 | HF16D-1510-2SN | 250 |
14 | 1500x1500x200 | HF16D-1515-2SN | 370 |
15 | 2000x1000x200 | HF16D-2010-2SN | 330 |
16 | 2400x1200x200 | HF16D-2412-2SN | 440 |
*Other sizes can be manufactured as per requirement.
3D Welding Table Applications:
Fabrication Projects
Metal Processing
Industrial Maintenance
Machine Manufacturing
Automotive Repairs
Aerospace Industry
