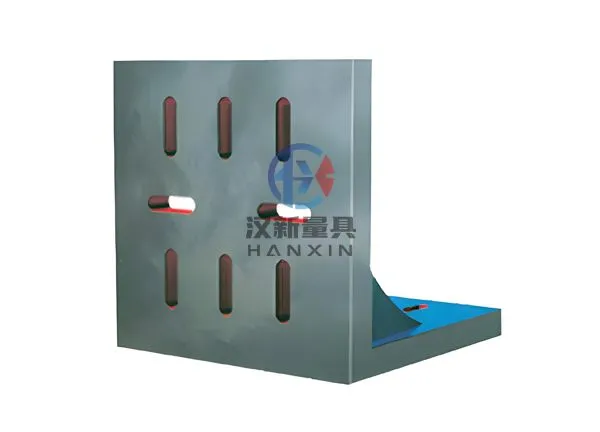

Cast Iron Precision Angle Plate

Next Product Inquire Now

Cast Iron Precision Angle Plates are made of high tensile cast iron. Accurately machined 90° square, guaranteed 90 degrees, easy to secure, built to last, and helpful in a variety of situations; available both in open end and webbed end styles. Slots provide many options for mounting. Clamping slots are widely used for machining, layout and inspection.

OEM or ODM service: we offer a wide range of services from standard Cast Iron Angle Plates to custom order as per request.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request at extra cost.

Delivery Costs: calculated during the checkout process.

Inquire Now Next Product

Specification:

Cast Iron Precision Angle Plate — Product Details

Our Cast Iron Precision Angle Plates are heavy-duty L-shaped fixtures engineered to provide a stable, guaranteed 90° reference for machining, layout, and inspection work. Manufactured from close-grained, stress-relieved cast iron and finished to precision tolerances, these plates provide long-term dimensional stability and excellent vibration damping — ideal for milling, drilling, grinding, fixture building, and quality control tasks.

Key Features

· Material & Treatment: Made from high-grade close-grained cast iron (commonly HT200–HT300 or equivalent) that has been stress-relieved to remove internal casting stresses and minimize long-term distortion.

· Precision Surfaces: Base and upright faces are precision machined and, where required, hand-scraped or ground to achieve and maintain flatness and perpendicularity (guaranteed 90°). Typical finishing options include scraped or ground faces for grade-level accuracy.

· Mounting Flexibility: T-slots, slotted holes, or through holes are machined in one or both working faces to allow flexible clamping and fixturing of workpieces; available in open-end or webbed (box) styles depending on stiffness and access needs.

· Rigid, Ribbed Construction: Webbed or ribbed castings reduce distortion and increase load capacity while keeping weight reasonable for the chosen size.

Range & Customization: Standard sizes cover common shop needs; custom dimensions, special slot patterns, tapped holes, or customer-specified tolerances are available on request (OEM/ODM options).

Product Details	Description
Material	HT200–300
Specification	Standard or customized
Working Surface	Flat, T-slots, slotted holes, custom hole sizes, etc.
Hardness of Working Surface	HB160–240
Surface Treatment	Hand-scraped, ground finish, or machined finish
Surface Coating	Working surface covered with antirust oil; unmachined areas covered with antirust paint
Precision Grade	1–3
Type	Webbed end or open end
Packaging	Anti-rust packing + plywood box
Warranty	1 year

High Precision Cast Iron Angle Plate

Key Features:

• Made from high quality Cast Iron.

• Heat-treated for stress relief.

• High strength, High precision, High hardness.

• Finer accuracies can also be achieved on request at extra cost.

• Slots arranged for maximum clamping versatility.

• Customized and specifically designed as customers’ requirement.

These features make Hanxin one of the best Cast Iron Angle Plates manufacturers in the industry.

Standard Size of Cast Iron Angle Plates

Specification（mm）	Squareness Between Adjacent Measuring Surfaces			Flatness and Parallelism of Measuring Surface			Flatness and Parallelism of Datum Surface
	Precision Grade (μm)
	GR “1”	GR “2”	GR “3”	GR “1”	GR “2”	GR “3”	GR “1”	GR “2”	GR “3”
200 × 200	8	16	30	4	8	16	6	12	24
300 × 200	10	20	40	5	10	20	8	16	30
300 × 300	10	20	40	5	10	20	8	16	30
400 × 300	12	24	45	6	12	24	10	20	40
400 × 400	12	24	45	6	12	24	10	20	40
500 × 400		28	50		14	28		24	48
500 × 500		28	50		14	28		24	48
800 × 600		35	60		18	35		28	55

*Large sizes can be made as per requirement.

Applications

· Machining fixtures and jigs (milling, boring, drilling)

· Precision layout and marking out where square reference is required

· Inspection and quality control as a vertical reference surface for gauges and indicators

· Assembly fixtures and toolroom setups where perpendicularity must be preserved under load

We supply standard precision angle plates as well as bespoke configurations (special sizes, added tapped holes, unusual slot patterns, special tolerance control). Tell us the application or send a drawing — we’ll recommend the ideal plate style (open/webbed), material grade, and tolerance band for your needs.
