Angle Plate Slotted Open End

Next Product Inquire Now

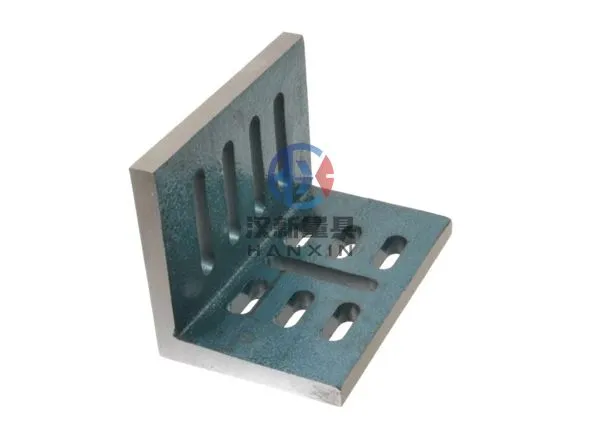

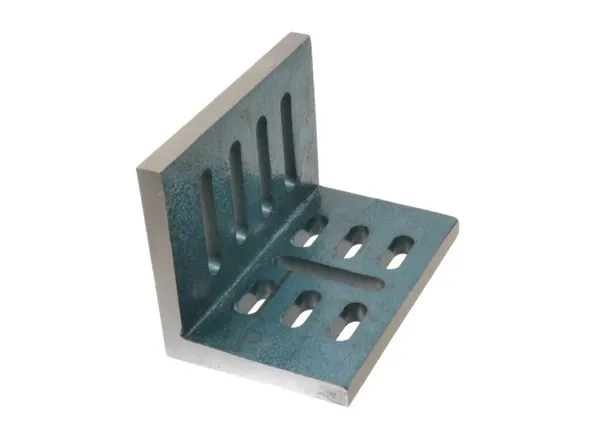

    Angle Plates Slotted Open End are made of high tensile cast iron. They are ground or machined finish with open end. Slotted pattern to allow for easy flexible set-up of fixturing components. They provide a versatile means of holding work for layout, machining and inspection and also are widely used as vertical reference. All machined faces are square and parallel. They can be made in single piece or in two sections.


    Key Features:

    • Made from high quality Cast Iron.

    • Heat-treated for stress relief.

    • High strength, High precision, High hardness.

    • Finer accuracies can also be achieved on request at extra cost.

    • Slots arranged for maximum clamping versatility.

    • Customized and specifically designed as customers’ requirement.

    These features make HENGFENG one of the best Cast Iron Angle Plates manufacturers in the industry.


Specification:

OEM or ODM service: we offer a wide range of services from standard Cast Iron Angle Plates to custom order as per request.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request at extra cost.

Delivery Costs: calculated during the checkout process.


Material: HT200-300

Specification: standard or customize

Working Surface: flat, T-slots, slotted holes, custom hole sizes, etc.

Hardness of the working surface: HB160-240

Surface treatment: hand scraped, ground finish or machined finish

Surface coating: working surface covered with antirust oil and unmachined areas covered with antirust paint.

Precision grade: 1-3

Type: webbed end or open end

Packaging: anti-rust packing + plywood box

Warranty: 1 year


Standard Size of Cast Iron Angle Plates

Specification(mm)Squareness BetweenFlatness and ParallelismFlatness and Parallelism
       Adjacent Measuring     of Measuring Surface     of Datum Surface
     Surfaces

Precision Grade (μm)
GR “1”GR “2”GR “3”GR “1”GR “2”GR “3”GR “1”GR “2”GR “3”
200 × 20081630481661224
300 × 2001020405102081630
300 × 3001020405102081630
400 × 30012244561224102040
400 × 40012244561224102040
500 × 400
2850
1428
2448
500 × 500
2850
1428
2448
800 × 600
3560
1835
2855

*Custom - Designed specifically for your application. Some options include T-slots, custom hole sizes, custom patterns. Contact us for more information.
