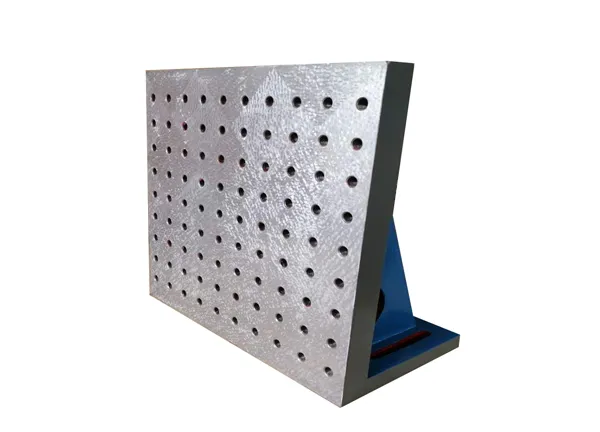

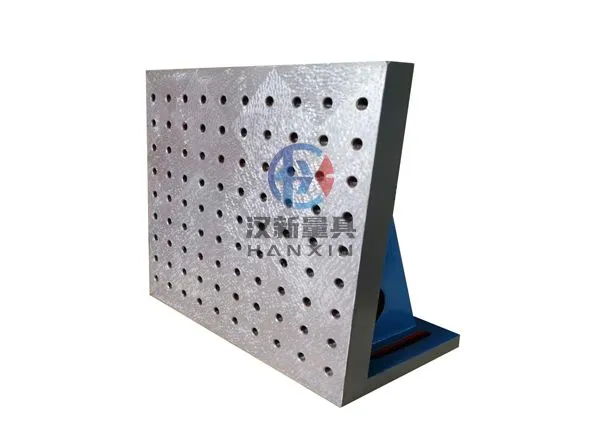

Angle Plate with Locator Grid has one face that is perpendicular to pallet. The face is either square or rectangular and is ideal for very large parts. The face is positioned near or beyond the centerline of your machine pallet to maximize the parts space within the machine’s work envelope.
Manufacturer: Hengfeng
Material: HT200, HT250, HT300
Finish Machined
Grid Spacing and Hole Diameter: standard or custom - designed
Elevate your machining accuracy and efficiency with Hengfeng's Angle Plate with Locator Grid. Engineered for precision and versatility, this tool is indispensable for layout, tooling, and machining operations.
High-Quality Cast Iron Construction: Manufactured from HT200, HT250, or HT300 cast iron, ensuring durability and stability.
Heat-Treated for Stress Relief: Enhances material strength and reduces internal stresses, prolonging tool life.
Precision Machined Finish: Provides flatness and squareness, meeting stringent accuracy requirements.
Locator Grid Design: Features a grid of Ø12/M12 holes with standard or custom spacing (40mm or 50mm), facilitating quick and secure clamping setups.
Customizable Dimensions: Available in sizes ranging from 300×300mm to 800×800mm, with configurations tailored to your specific needs.
Precision Machining: Angle plate with locator grids are ideal for vertical clamping and holding of workpieces in machine structures.
Tooling and Layout: Facilitates accurate positioning and alignment during setup.
Inspection and Measurement: Ensures repeatable setups for consistent quality control.
Grid spacing 40, Ø12/ M12
No. | A | B | C | D | E | F | G | H | I | J | K | Spacing | No. of holes | Fixing holes |
1 | 300 | 300 | 220 | 100 | 250 | 90 | 40 | 30 | Ø18 | Ø12/ M12 | 75 | 40 | 30 | 4 |
2 | 400 | 400 | 280 | 160 | 320 | 90 | 40 | 30 | Ø18 | Ø12/ M12 | 75 | 40 | 56 | 4 |
3 | 500 | 500 | 340 | 200 | 400 | 90 | 50 | 35 | Ø18 | Ø12/ M12 | 75 | 40 | 90 | 4 |
4 | 630 | 630 | 435 | 250 | 500 | 100 | 50 | 40 | Ø18 | Ø12/ M12 | 75 | 40 | 144 | 6 |
5 | 800 | 800 | 525 | 320 | 640 | 115 | 50 | 45 | Ø18 | Ø12/ M12 | 75 | 40 | 240 | 6 |
Grid spacing 50, Ø12/ M12
No. | A | B | C | D | E | F | G | H | I | J | K | Spacing | No. of holes | Fixing holes |
1 | 300 | 300 | 220 | 100 | 250 | 90 | 40 | 30 | Ø18 | Ø12/ M12 | 75 | 50 | 30 | 4 |
2 | 400 | 400 | 280 | 160 | 320 | 90 | 40 | 30 | Ø18 | Ø12/ M12 | 75 | 50 | 56 | 4 |
3 | 500 | 500 | 340 | 200 | 400 | 90 | 50 | 35 | Ø18 | Ø12/ M12 | 75 | 50 | 90 | 4 |
4 | 630 | 630 | 435 | 250 | 500 | 100 | 50 | 40 | Ø18 | Ø12/ M12 | 75 | 50 | 144 | 6 |
5 | 800 | 800 | 525 | 320 | 640 | 115 | 50 | 45 | Ø18 | Ø12/ M12 | 75 | 50 | 240 | 6 |
Grid spacing 50, Ø16/ M16
No. | A | B | C | D | E | F | G | H | I | J | K | Spacing | No. of holes | Fixing holes |
1 | 300 | 300 | 220 | 100 | 250 | 90 | 40 | 30 | Ø18 | Ø16/ M16 | 75 | 50 | 30 | 4 |
2 | 400 | 400 | 280 | 160 | 320 | 90 | 40 | 30 | Ø18 | Ø16/ M16 | 75 | 50 | 56 | 4 |
3 | 500 | 500 | 340 | 200 | 400 | 90 | 50 | 35 | Ø18 | Ø16/ M16 | 75 | 50 | 90 | 4 |
4 | 630 | 630 | 435 | 250 | 500 | 100 | 50 | 40 | Ø18 | Ø16/ M16 | 40 | 50 | 144 | 6 |
5 | 800 | 800 | 525 | 320 | 640 | 115 | 50 | 45 | Ø18 | Ø16/ M16 | 75 | 50 | 240 | 6 |
*Other sizes & combinations can be manufactured as per requirement.
Material and Manufacturing Excellence
HT300 vs. HT200 Cast Iron Choices: HT300 provides higher tensile strength and better wear resistance, suitable for heavy-duty machining. HT200 offers cost efficiency with good damping properties—ideal for general-purpose applications. Hengfeng’s precision casting process ensures uniform grain structure, minimizing porosity and internal defects.
Straight-Line and Flatness Accuracy: After rough machining, each angle plate with locator grid undergoes a double-surface milling process to achieve a surface finish of Ra ≤ 1.6 μm. Final lapping brings flatness within 0.02 mm across the entire face. This exacting process reduces scrap rates and ensures long-term reliability.
Stress Relief and Aging Treatment: Following cast and rough-machining, every plate is placed in a controlled-temperature furnace (550 °C for 2 hours), releasing residual stress. A natural air-cooling process prevents thermal shock, guaranteeing dimensional stability in fluctuating shop-floor environments.
Locator Grid Advantages
Modular Fixturing: The uniform Ø12 mm hole pattern (40 mm or 50 mm pitch) allows compatibility with standard M12 clamping kits—T-nuts, dowel pins, and angle brackets. This grid accelerates changeover time by up to 40 %, reducing downtime between jobs.
Repeatable Rigidity: Locator grid holes are pre-bored with a positional tolerance of ±0.01 mm, ensuring that once you lock in a fixture, you can remove and remount workpieces with micron-level repeatability. This is crucial for high-volume batch runs where setup consistency equates to minimal scrap.
Versatility Across Operations: Whether you’re milling, drilling, or grinding, the grid pattern holds your workpiece squarely at a perfect 90° relative to the machine table or index head—enabling 5-axis machining and vertical/horizontal transitions without secondary fixturing.
Expertise in Precision Tools: With years of experience, Hengfeng is renowned for manufacturing high-quality measuring tools.
Customization to Your Needs: We offer OEM and ODM services to meet your specific requirements.
Comprehensive Quality Assurance: Each product comes with an EX-works inspection report, ensuring it meets rigorous standards.
Transform your shop floor into a high-precision production hub with Hengfeng's Angle Plate with Locator Grid.
• Precision at Every Hole – Each Ø12 mm hole is machined to ±0.01 mm positional accuracy, giving you confidence in every setup.
• Streamlined Fixturing – No more trial-and-error when positioning clamps—our grid layout delivers consistent results, time after time.
• Strength That Lasts – HT300 cast iron resists wear, dampens vibration, and stands up to years of continuous machining.
• Future-Proof Customization – Expand your capabilities with optional T-slots, threaded holes, or integrated coolant pathways.Order yours today and experience the ROI of a truly precision-engineered angle plate with locator grid.
