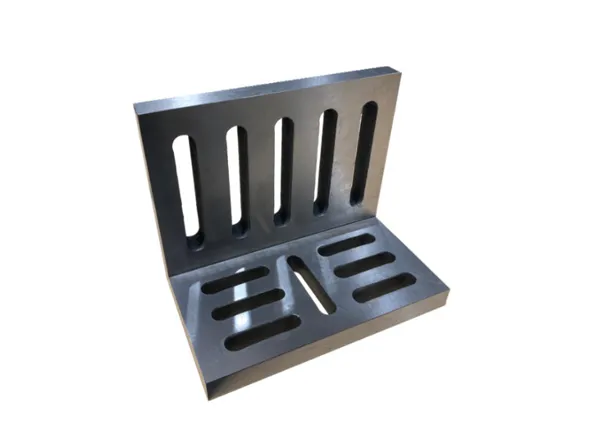

Slotted Angle Plate Open End -Ground Finish

Next Product Inquire Now

Material: HT200-300

Specification: standard or customize

Working Surface: flat, T-slots, slotted holes, custom hole sizes, etc.

Hardness of the working surface: HB160-240

Surface treatment: hand scraped, ground finish or machined finish

Surface coating: working surface covered with antirust oil and unmachined areas covered with antirust paint.

Precision grade: 1-3

Type: webbed end or open end

Packaging: anti-rust packing + plywood box

Warranty: 1 year

Inquire Now Next Product

Specification:

Ground finsih angle plates open end -Ground Finish are made of high tensile cast iron. They are ground finish. Slotted pattern to allow for easy flexible set-up of fixturing components. They provide a versatile means of holding work for layout, machining and inspection and also are widely used as vertical reference. All machined faces are square and parallel. They can be made in single piece or in two sections.

OEM or ODM service: we offer a wide range of services from standard ground finsih angle plates to custom order as per request.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request at extra cost.

Delivery Costs: calculated during the checkout process.

Key Features:

• Made from high quality Cast Iron.

• Heat-treated for stress relief.

• High strength, High precision, High hardness.

• Finer accuracies can also be achieved on request at extra cost.

• Slots arranged for maximum clamping versatility.

• Customized and specifically designed as customers’ requirement.

These features make HENGFENG one of the best Cast Iron Angle Plates manufacturers in the industry.

Standard Size of Cast Iron Angle Plates

Specification（mm）	Squareness Between Adjacent Measuring Surfaces			Flatness and Parallelism of Measuring Surface			Flatness and Parallelism of Datum Surface
	Precision Grade (μm)
	GR “1”	GR “2”	GR “3”	GR “1”	GR “2”	GR “3”	GR “1”	GR “2”	GR “3”
200 × 200	8	16	30	4	8	16	6	12	24
300 × 200	10	20	40	5	10	20	8	16	30
300 × 300	10	20	40	5	10	20	8	16	30
400 × 300	12	24	45	6	12	24	10	20	40
400 × 400	12	24	45	6	12	24	10	20	40
500 × 400		28	50		14	28		24	48
500 × 500		28	50		14	28		24	48
800 × 600		35	60		18	35		28	55

*Custom - Designed specifically for your application. Some options include T-slots, custom hole sizes, custom patterns. Contact us for more information.

Product Overview: Slotted Angle Plate Open End – Ground Finish

The Slotted Angle Plate Open End – Ground Finish is a precision-engineered tool designed to provide stable and accurate support for workpieces during various machining operations. Crafted from high-tensile cast iron (HT200-300), this angle plate undergoes heat treatment for stress relief, ensuring durability and dimensional stability over time. Its ground finish offers a smooth, flat surface, enhancing the accuracy of setups and inspections. The open-end design, combined with strategically placed slots, allows for flexible and secure clamping of components, making it an essential fixture in workshops and manufacturing environments.

Material: High-tensile cast iron (HT200-300) for strength and rigidity.
Surface Treatment: Options include hand-scraped, ground finish, or machined finish, with working surfaces coated in antirust oil and unmachined areas protected by antirust paint.
Precision Grades: Available in grades 1 to 3, catering to various accuracy requirements.
Design: Open-end with slotted patterns for versatile clamping and fixturing.
Customization: Sizes, hole patterns, and slot configurations can be tailored to specific needs.
Packaging: Supplied with anti-rust packing in a sturdy plywood box.
Warranty: Comes with a 1-year warranty, ensuring quality and reliability.

Advantages of Ground Finsih Angle Plate:

Enhanced Accuracy: The ground finish and precision machining ensure flatness and perpendicularity, vital for high-precision tasks.
Versatility: Suitable for a range of applications, including layout, machining, inspection, and as a vertical reference surface.
Durability: The robust cast iron construction and stress-relief treatment minimize distortion and wear, extending the tool's lifespan.
Customizable: Ability to tailor specifications to meet unique operational requirements.
Compliance: Manufactured to meet industry standards, ensuring compatibility and performance.

Applications:

This slotted angle plate is ideal for use in:

Machining Operations: Providing a stable base for milling, drilling, and grinding tasks.
Inspection Processes: Serving as a reference surface for checking the squareness and flatness of components.
Fixture Development: Acting as a foundational element in the creation of custom jigs and fixtures.
Layout Work: Assisting in the precise marking and measurement of workpieces.

By integrating this high-quality slotted angle plate into your operations, you can achieve greater precision, efficiency, and reliability in your manufacturing processes.
