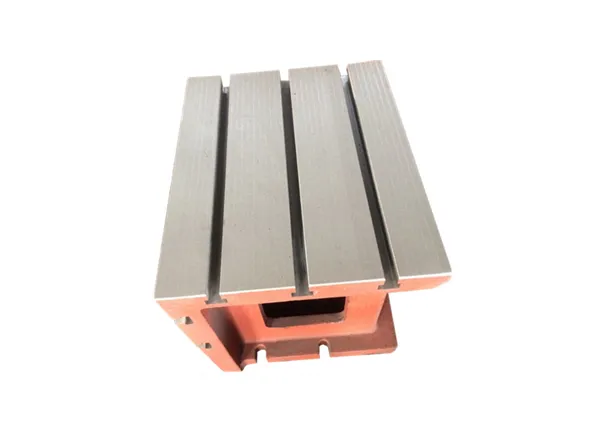

Cast Iron T-slot Square Block

Next Product Inquire Now

Cast Iron T-slot Square Blocks are made of high tensile cast iron properly seasoned against distortion. They are used as a versatile tool for layout machine set – ups, tooling and inspection of large jobs. They can also be used as right angles and squares. They are made and used either in single or in combination for comprehensive applications. The T-slots on vertical face and top face provided along and / or across the length, as per required. They are manufactured meet or exceed the requirements set forth by various National and International Standards.

OEM or ODM service: we offer a wide range of services from standard Cast Iron Square Boxes/Blocks to customized and specifically designed as per loading requirement.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request for an additional charge.

Delivery Costs: calculated during the checkout process.

Inquire Now Next Product

Specification:

Cast Iron T-slot Square Block is mainly used for testing and marking the parallel and vertical degree of each part. A square box is a cavity cube with six working surfaces made of cast iron or steel, and one of the working faces has a V-slot.

Cast Iron T-slot Square Block Test Method

For square boxes with a side length of 315 mm and below, place 1 mm gauge blocks at each side of the tested surface of the square box, and place a knife block lip ruler on the working surface. Then test the plug with gauge blocks at each tested point.

The difference between the size of the gauge block group that just plugs the gap and the gauge blocks on both sides is regarded as the deviation of the tested point and both sides.

This test should be carried out at several sections of the square box working surface in vertical, horizontal, and diagonal directions.

When the measured errors at various locations in the same direction are the same, this value is regarded as the maximum value. When the error direction is inconsistent, the absolute value of the maximum positive and negative difference is taken as the flatness of the inspected surface.

Material: HT200, HT250, HT300

Specification: customize

Surface: flat / tapped holes / T-slots / cored elongated slots

Hardness of the working surface: HB160-240

Surface treatment: hand-scraped or finish-milling

Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

Heat-treated: available for stress relief, stability and wear resistance

Precision grade: 2-3

Packaging: anti-rust packing+ plywood box

Warranty: 1 year

Key Benefits of Cast Iron T-slot Square Block:

· Versatile T-slot pattern on top and/or vertical faces for secure clamping, jigs, and modular fixtures, ideal for repeatable setup and complex assemblies.

· Designed for inspection, layout, squaring, and right-angle referencing of large workpieces; can be used individually or in combinations for flexible workflows.

· Manufactured from HT200–300 grade cast iron with working-surface hardness commonly in the HB160–240 range. Precision grinding, hand-scraping, or finish-milling options are available. Custom dimensions, tapped holes, V-grooves, and special configurations can be provided on request.

These features make Hanxin one of the best box angle plates manufacturers in the industry.

*Large sizes can be made as per requirement.

Applications

Suitable for precision inspection, fixture building, milling and boring setups, welding fixtures, machining alignment, and any workshop requiring repeatable, high-accuracy right-angle reference points.
