Cast Iron Box Table

Next Product Inquire Now

Cast iron box tables are usually used in machine processing workshop, and suitable for fixing and clamping of workpieces while machining.

OEM or ODM service: we offer a wide range of services from standard Cast Iron Square Boxes/Blocks to customized and specifically designed as per loading requirement.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request for an additional charge.

Delivery costs: calculated during the checkout process.

Inquire Now Next Product

Specification:

Material: HT200-300

Specification: customize

Surface: flat / tapped holes / T-slots / cored elongated slots

Hardness of the working surface: HB160-240

Surface treatment: hand-scraped or finish-milling

Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

Heat-treated: available for stress relief, stability and wear resistance

Precision grade: 2-3

Packaging: anti-rust packing+ plywood box

Warranty: 1 year

Features of Cast Iron Box Tables:

• Made from high quality cast iron.

• Heat-treated for stress relief.

• Offered in two grades of accuracies – Grades: 2 & 3.

• Machined T-slots and cored elongated slots provided to facilitate clamping.

• Special sizes as per customer’s specific requirement also offered.

• Offered as matched pair.

These features make Hanxin one of the best box angle plates manufacturers in the industry.

*Sizes & combinations can be manufactured as per requirement.

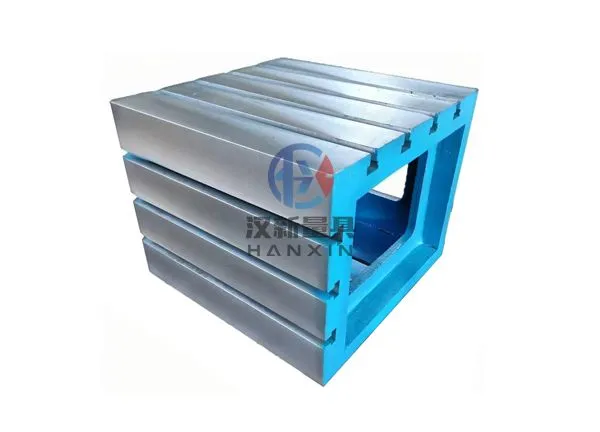

Cast Iron Box Tables / T-Slot Box Cubes

Cast iron box tables, also known as T-slot box cubes, are available in T-slotted, elongated-hole-slotted, and tapped (threaded hole) designs. Each table or cube is customized according to its specific application, ensuring optimal performance for a variety of workshop needs.

Applications:

• Serve as a workholding device to clamp and hold workpieces in a vertical position.
• Act as a vertical reference for inspection and tooling in machining processes such as shaping, planing, boring, milling, grinding, and drilling.
• Clamp motors, engines, transmissions, and other components for assembly, testing, or inspection.
• Widely used on horizontal boring mills or drilling presses to secure workpieces efficiently.

With multiple clamping surfaces, a single box cube can hold multiple workpieces simultaneously, significantly reducing setup time.

Material and Construction:

• Made of gray cast iron (GG-20, GG-25, or GG-30), offering excellent abrasion resistance, tensile strength, and mechanical stability.
• Flatness accuracy machined according to DIN 876; T-slots machined to DIN 650 standards.

Sizes:

• Custom sizes are available upon request, including large, heavy-duty cubes suitable for floor-type milling and boring machines.

These features make cast iron box tables and T-slot cubes a versatile and reliable solution for a wide range of workshop applications.
