Cast Iron Clamping Cube

Next Product Inquire Now

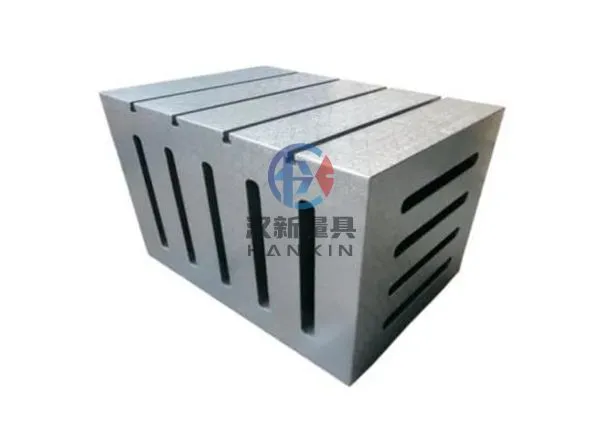

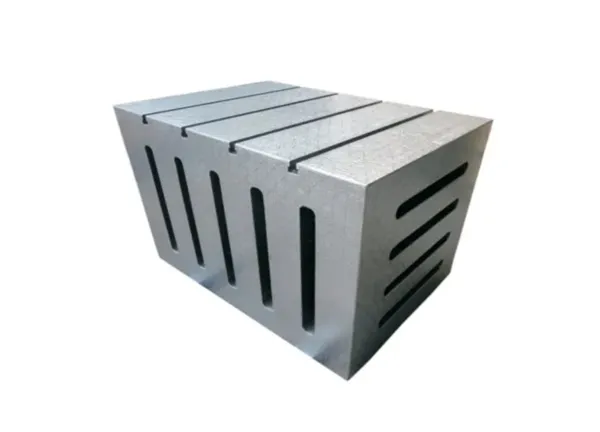

Cast Iron Clamping Cubes are made of high tensile cast iron properly seasoned against distortion. They are primarily used to mount small testing components， they are also can be rotated so that the clamping face is available vertically or horizontally. Easily accessible slotted holes allow flexible positioning and fixation on the clamping plate. We manufacture customized clamping cubes in variable sizes and types to fit your testing applications. Clamping can be realized with T-slots, cored elongated slots or with tapped holes, etc.

OEM or ODM service: we offer a wide range of services from standard Cast Iron Square Boxes/Blocks to customized and specifically designed as per loading requirement.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request for an additional charge.

Delivery Costs: calculated during the checkout process.

Inquire Now Next Product

Specification:

Material: HT200-300

Specification: customize

Surface: flat / tapped holes / T-slots / cored elongated slots

Hardness of the working surface: HB160-240

Surface treatment: hand-scraped or finish-milling

Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

Heat-treated: available for stress relief, stability and wear resistance

Precision grade: 2-3

Packaging: anti-rust packing+ plywood box
