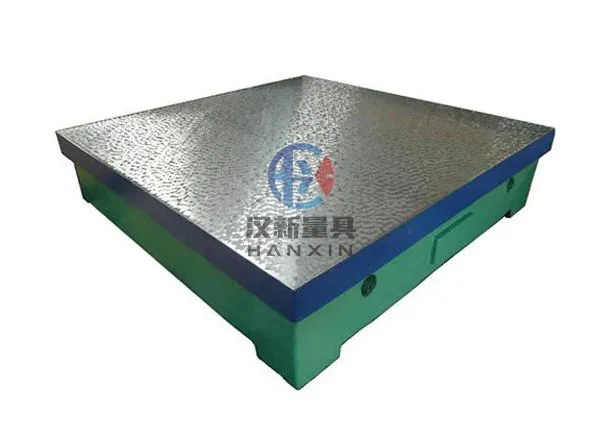

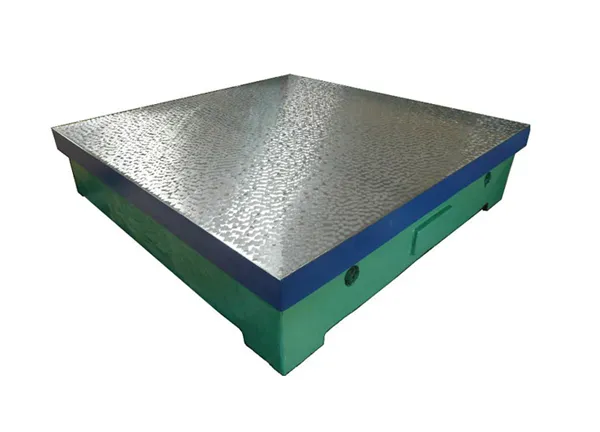

Hand Scraped Cast Iron Surface Plate

Next Product Inquire Now

    Hand Scraped Cast Iron Surface Plates are made from good quality close grained high duty grey Cast Iron (C.I), heat treatment is available to relieve internal stresses. Furter more, the cored and ribbed structure help to increase the structural rigidity to bear the heavy loads. Hand Scraped Cast Iron Surface Plates provide a precision reference or datum plane for spotting, tool marking, inspection of workpieces, checking accuracy of other surfaces, for many types of gauging and marking out (layout) operation.


    Cast Iron Surface Plates are used in conjunction with accessories such as cast iron angle plate, cast iron square box, cast iron square ruler, cast iron right angle ruler, cast iron straight edge, etc.


    OEM or ODM service: we offer a wide range of services from standard surface plates to custom order as per request.

    Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request for an additional charge.

    Delivery Costs: calculated during the checkout process.

Specification:

Key Features:

• Manufactured from high quality cast iron.

• Rigid ribbed structure

• Thick & solid top surface

• Precisely finished by planning and hand scraping

• Accuracy acc. to IS2285-2003

• Custom sizes are welcome as per request.

These features make HENGFENG one of the best Cast Iron Surface Plate manufacturers in the industry.



Material: HT200-300 or customized

Specification: 200x200 up to 4000x8000mm or customized

Working Surface: flat, grid slots for location, tapped holes, T-slots, etc.

Hardness: HB160-240

Structure: ribbed (bone) structure with enough wall thickness

Surface Coating: working surface covered with antirust oil and unmachined areas covered with antirust paint

Heat-treated: available for stress relief, stability and wear resistance

Accessories: supplied with suitable arrangement for leveling and anchoring on the floor.

Stands with Leveling Screws: available for corresponding sizes and supplied at extra cost, if required. Total height from floor to the top of the surface plate is approx. 750 to 800mm.

Handles: Surface Plates up to 500 x 500 mm provided with handles for lifting at extra cost, if request.

Precision grade: 0-3

Packaging: anti-rust packing+ plywood box

Warranty: 1 year

cast iron surface plate drawing.jpg

Standard Sizes of Surface Plates / Tables

No.SizeWidth*Length (mm)Precision Grade
GR “0”GR “1”GR “2”GR “3”
Flatness
  (μm)
1200x2003.5714
2300x2004815
3300x3004815
4300x4004816
5400x4004.58.517
6400x5004.5918
7400x60051019
8500x50051019
9500x60051019
10500x8005.51121
11600x8005.51122
12600x900611.523
131000x750712.52550
141000x1000713.52754
151000x1200
142958
161000x1500
163263
171000x2000
18.53774
181500x2000
204080
191500x2500
22.54590
201500x3000
2550100
212000x2000
224488
222000x3000
2753106
232000x4000
3264127
242000x5000
3775150
252000x6000
4386172
262000x7000
4997194
272000x8000
54.5109218
282500x3000
28.557114
292500x4000
3367133
302500x5000
3977154
312500x6000

88176
322500x7000

99198
332500x8000

110221
343000x3000

61122
353000x4000

70140
363000x5000

80160
373000x6000

90.5181
383000x7000

101203
393000x8000

112.5225
404000x4000

78156
414000x5000

87174
424000x6000

96.5193
434000x7000

107213.5
444000x8000

117235

*Other sizes & combinations can be manufactured as per requirement.

*Large sizes can be made by joining plates along sides together to make required overall area.
