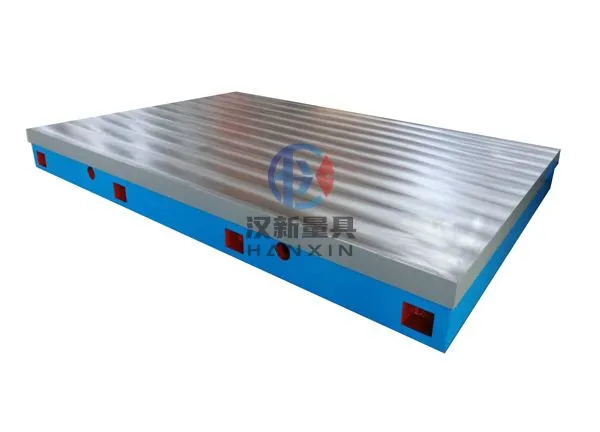

Cast Iron Floor Plate

Next Product Inquire Now

    Material: HT200-300

    Specification: 200x200-4000x8000mm or customize

    Surface: flat, grid slots for location, tapped holes, T-slots

    Hardness of the working surface: HB160-240

    Surface treatment: precisely finished by planning or hand scraping

    Foundry process: resin sand casting

    Structure: rib (bone) structure with enough wall thickness

    Painting: primer and face painting

    Surface coating: working surface covered with pickling oil and non-working surface covered with anti-rust paint

    Heat-treated: available, for stress relief

    Stands: available for corresponding sizes

    Precision grade: 0-3

    Working temperature: (20±5)℃

    Packaging: plywood box


Specification:


No.Width X Length(mm)Precision Grade
0123
Flatness Tolerance(um)
1200X2003.512.525
2300X200412.525
31000X750412.525
41000X750412.525
51000X7504.512.525
61000X7504.512.525
71000X750512.525
81000X750512.525
91000X750512.525
101000X7505.512.525
111000X7505.512.525
121000X750612.525
131000X750
12.52550
141000X1000
13.52754
151000X1200
142958
161000X1500
163263
171000X2000
18.53774
181500X2000
204080
191500X2500
22.54590
201500X3000
2550100
212000X2000
224488
222000X3000
2753106
232000X4000
3264127
242000X5000
3775150
252000X6000
4386172
262000X7000
4997194
272000X8000
54.5109218
282500X3000
28.557114
292500X4000
3367133
302500X5000
3977154
312500X6000

88176
322500X7000

99198
332500X8000

110221
343000X3000

61122
353000X4000

70140
363000X5000

80160
373000X6000

90.5181
383000X7000

101203
393000X8000

112.5225
404000X4000

78156
414000X5000

87174
424000X6000

96.5193
434000X7000

107213.5
444000X8000

117235
