Cast Iron Surface Plate Accessories & Metrology Tools for Inspection, Alignment and Leveling
Hanxin manufactures cast iron surface plate accessories and precision metrology tools for machine setup, flatness and squareness inspection, hand scraping, equipment support and leveling. Choose straight edges, right-angle squares, machine-checking frames, leveling jacks, pads and ground anchors in standard or custom configurations.
Hanxin supplies both cast iron metrology tools used on or alongside a surface plate and heavy-duty support components used beneath plates, tables and machine tools. Our product range is designed for toolrooms, metrology laboratories, machine builders, maintenance teams and industrial plants. Standard products are available for common applications, while sizes, materials, accuracy grades, working-surface finishes and support configurations can be discussed for project-specific requirements.
Choose the Right Cast Iron Surface Plate Accessory by Application
| Accessory Group | Primary Function | Applications |
|---|
| Cast Iron Straight Edges | Provide a straight reference for checking flatness, alignment and parallel positioning | Machine beds, guideways, surface plates, bearing surfaces, setup and hand-scraping work |
| Cast Iron Right-Angle Squares | Provide a vertical reference for checking squareness and perpendicularity | Workpiece inspection, fixture setup, machine assembly and toolroom verification |
| Machine Checking Squares | Check geometric relationships across machine axes | Machining centers, machine tools, inspection systems and three-axis geometry checks |
| Surface Plate Leveling Jacks | Provide adjustable point support and controlled height correction | Cast iron or granite surface plates, pedestals, stands and heavy fixtures |
| Machine Leveling Pads | Distribute equipment loads while supporting leveling and vibration control | Lathes, milling machines, presses, production equipment and heavy tables |
| Ground Anchors | Support, adjust and secure surface plates or machine tools at the installation point | Permanent machine installation, large platforms and repeated height adjustment |
Cast Iron Straight Edges for Flatness and Alignment Inspection
A cast iron straight edge is a precision reference tool rather than an ordinary measuring ruler. It is used to check straightness and flatness on machine tables, beds, guideways and large machined surfaces. It can also be used during machinery setup, alignment and blue-matching or spotting operations in hand scraping.
Hanxin straight edges are available in I-section or parallel configurations. The castings are stress relieved for dimensional stability, and selected models are offered with hand-scraped, ground or machined working surfaces. Depending on the product, standard lengths extend from 500 mm to 4,000 mm, with other sizes available on request.
Right-Angle and Frame Squares for Perpendicularity Checks

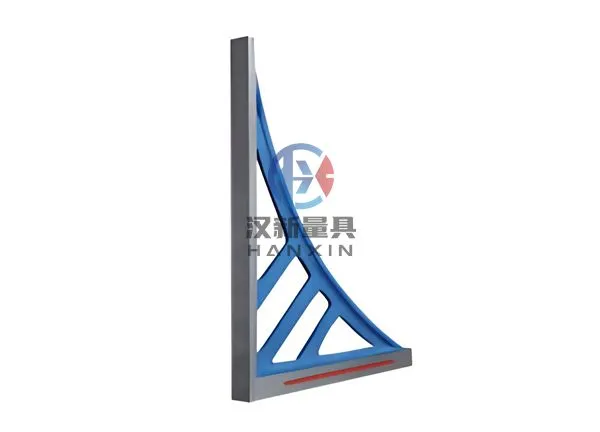

Cast iron squares create a stable vertical reference from a known flat surface. They are used for checking workpiece squareness, aligning fixtures and verifying the perpendicular relationship between machine components. Hanxin offers right-angle squares, right-angle rulers, master frames and frame-type machine checking squares for different inspection layouts.
◆ Right-angle models use HT200, HT250 or HT300 cast iron and are available in Precision Grades 1 and 2.
◆ Hand-scraped or finish-machined surfaces can be selected according to the application.
◆ Standard right-angle square sizes shown in the range extend from 300 × 200 mm to 1,000 × 750 mm, while custom sizes and finer accuracy requirements can be discussed.
For checking multiple machine axes, a frame-type square or cast iron master frame is normally the more suitable choice. Its multiple working faces support geometric checks in more than one orientation, whereas a conventional right-angle square is better suited to a direct 90-degree reference between a base and an adjacent face.
Leveling Components for Surface Plates and Heavy Equipment
◆ Leveling jacks: Provide fine height adjustment beneath surface plates, stands or fixtures. Hanxin’s published range covers rated loads from 130 kg to 5,000 kg, with M10 to M36 screw options depending on model.

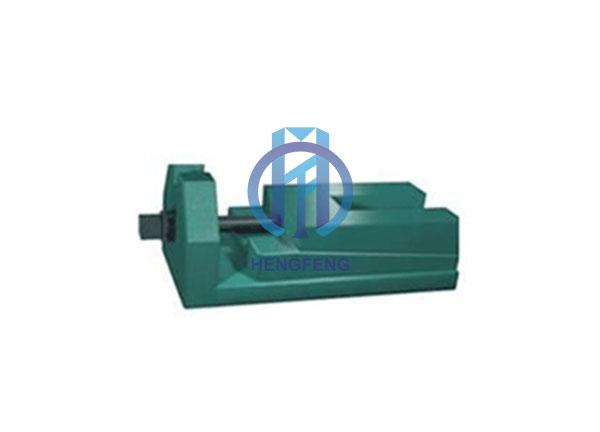

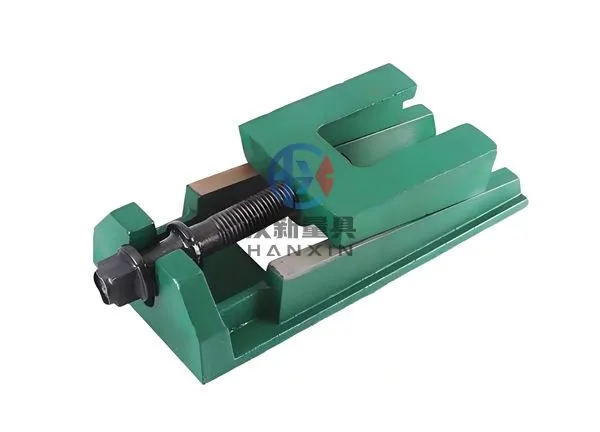

◆ Leveling pads: Support heavier machines and distribute loads over a wider contact area. Published models cover rated loads from 1,800 kg to 7,500 kg per pad, subject to model selection.
◆ Ground anchors: Combine support and adjustment for installed platforms and machine tools. Published models cover 130 kg to 5,000 kg rated load and 30–50 mm adjustment ranges.
Why Source Surface Plate Accessories from Hanxin?
◆ Manufacturing experience since 1978: Hanxin specializes in cast iron precision surfaces, measuring tools and related industrial products.
◆ Integrated production: Design, pattern making, casting, stress relieving, machining and inspection are supported within the company’s manufacturing system.
◆ Broad accessory range: Source straight edges, checking squares and leveling components together with a compatible cast iron surface plate.
◆ Standard and custom supply: Select catalog configurations or submit project drawings for application-specific production.
◆ Quality documentation support: Inspection reports and calibration documentation can be discussed according to the product and order requirements.
Hanxin supports OEM and ODM requirements for dimensions, material grades, working faces, accuracy levels, surface treatment and protective packaging. The company’s integrated capabilities include design, pattern making, foundry production, material testing, stress relieving, precision machining and inspection.
