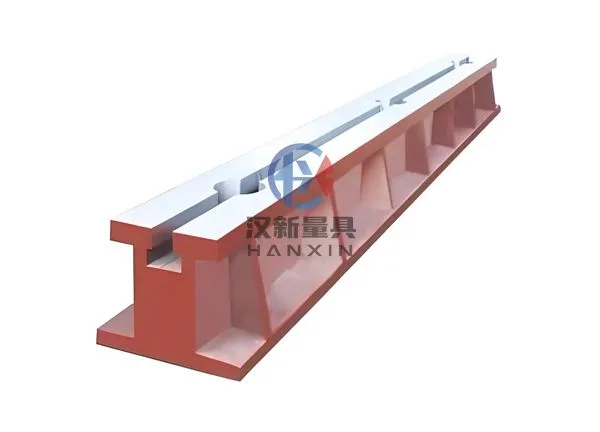

Cast Iron T-slot Ground Rail

Next Product Inquire Now

Cast Iron T-slot Ground Rails are evenly disposed according to the fixed point of large equipment, and then join together as a whole ground rail platform. They are mainly used for the assembling, trial, welding and testing of large equipment. They can replace large cast iron surface plates, and save cost and space.

Inquire Now Next Product

Specification:

HANXIN Cast Iron T-slot Ground Rails are designed to be evenly disposed according to the fixed points of large equipment, seamlessly joining together to form a comprehensive, whole ground rail platform. They are an ideal, cost-effective solution to replace large solid cast iron surface plates, significantly saving both workspace and investment.

Our T-slot guide rails are primarily used for the assembling, trial running, welding, and testing of large-scale equipment.

Key Features

l Customizable Length: Available in standard lengths from 1500mm to 4000mm, with custom dimensions available upon request.

l High Rigidity: Crafted from high-quality HT250-300 cast iron for exceptional stability under heavy loads.

l Precision Machined: The working surface features precision-machined T-slots, ideal for secure clamping and positioning.

l Space & Cost Saving: Modular design eliminates the need for massive, single-piece surface plates, saving factory space and reducing costs.

Technical Specifications

Parameter	Details
Material	HT250-300 Cast Iron
Standard Length	1500mm - 4000mm (Customizable)
Surface Feature	Precision Machined T-slots
Working Surface Hardness	HB160-240
Surface Treatment	Precision Machining
Foundry Process	Resin Sand Casting
Painting	Primer and Face Painting
Surface Coating	Covered with pickling oil
Working Temperature	(20±5) ℃
Precision Grade	Grade 2 - Grade 3
Packaging	Export-standard Plywood Box

Applications of Cast Iron T-slot Ground Rail

l Assembly and trial of heavy machinery and large equipment.

l Welding platforms for large structural components.

l Precision testing and measurement stations.

l Modular floor rail systems for industrial workshops.

Why Choose HANXIN?

As a professional manufacturer of precision measuring tools, HANXIN guarantees strict quality control from the resin sand casting process to final machining. We provide tailored cast iron t-slot floor guide rail solutions to meet your specific equipment layout requirements.
