At Hanxin, precision isn’t optional—it’s the standard. Whether producing aerospace components or intricate medical parts, every cut, measurement, and inspection must be exact. Behind this level of accuracy lies a critical yet often overlooked tool: the surface plate. Though simple in appearance, it serves as the foundation for quality control and precision machining in any workshop.
A surface plate is a flat, high-precision reference platform used in machining, metrology, and inspection processes. Commonly manufactured from granite, cast iron, or occasionally glass, it provides a stable and level plane for accurate measurement, layout, and part setup. Its key characteristic is exceptional flatness, often maintained within a few millionths of an inch.

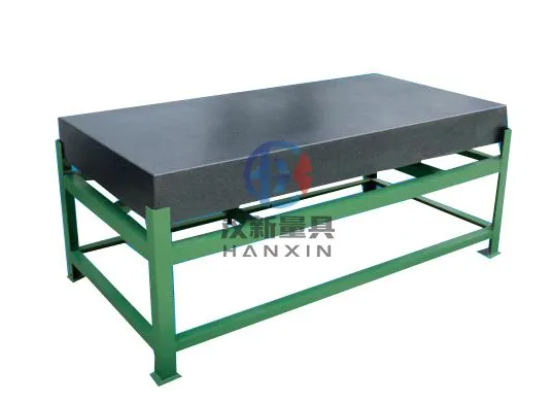

Granite is the preferred material in modern applications due to its superior durability, excellent thermal stability, and natural resistance to corrosion. Each granite plate is carefully quarried, precision-ground, and finely lapped to achieve an ultra-flat, smooth surface. While cast iron plates are still found in some traditional workshops, they are heavier and more susceptible to rust.
Surface plates are available in a wide range of sizes—from compact benchtop units to large-scale platforms weighing several tons. They are typically supported by rigid stands to maintain stability and are classified by flatness tolerance. Grade AA (laboratory grade) offers the highest precision, followed by Grade A (inspection grade) and Grade B (toolroom grade), ensuring suitability for different levels of accuracy requirements.
Surface plates form the foundation of precision work across machining, inspection, and assembly processes. At Hanxin and in advanced machine shops worldwide, they support a wide range of critical applications:
Surface plates act as a reference plane for evaluating flatness, parallelism, and squareness. By combining them with tools such as height gauges, dial indicators, or coordinate measuring machines (CMMs), machinists can verify dimensions against strict design specifications.
Example: To confirm a machined block is perfectly flat, it is placed on the surface plate and checked with a dial indicator to identify even the smallest deviations.
During inspection, the surface plate provides a stable and reliable base for high-accuracy checks. When used with gauge blocks, precision squares, and other accessories, it ensures components meet tight tolerance requirements.
Example: The perpendicularity of a cylindrical part can be verified by positioning it on the plate alongside a precision square.
Before machining begins, surface plates are used to position and align workpieces or fixtures. Machinists may also perform layout marking or scribing directly on the plate to ensure accurate material preparation.
Surface plates play a key role in calibrating measurement instruments such as micrometers and height gauges. Their certified flatness guarantees reliable calibration results and consistent measurement accuracy.
Example: A height gauge is checked on the plate to ensure its base is perfectly level prior to measurement.
In precision assembly operations, surface plates provide a flat and stable platform for aligning and assembling components. This is especially critical in industries requiring micron-level accuracy.
Example: When assembling multi-component medical devices, a surface plate ensures precise alignment and fit across all parts.
Surface plates may appear to be simple slabs of stone or metal, but their impact on precision manufacturing is significant. They are essential tools that ensure accuracy, consistency, and reliability throughout the entire production process.
The defining strength of a surface plate lies in its exceptional flatness. Even the slightest imperfection in a reference surface can lead to measurement errors and defective parts. High-precision Grade AA plates, for example, can achieve flatness within 0.000025 inches (25 millionths), providing a reliable benchmark for critical measurements.
From initial layout to final inspection, surface plates offer a uniform reference plane. This consistency minimizes variables and ensures that every stage of machining and inspection aligns with the same standard, improving overall process control.
Surface plates support a wide variety of applications, including measurement, inspection, setup, calibration, and assembly. Their adaptability makes them indispensable across industries, from general manufacturing to high-precision sectors.
Granite surface plates, in particular, are highly resistant to wear, corrosion, and thermal expansion. They maintain their structural integrity even in challenging workshop environments, ensuring long-term stability and dependable performance.
Although premium surface plates require an upfront investment, they significantly reduce the risk of costly errors such as part rejection or rework. By ensuring measurement accuracy from the start, they deliver long-term value and operational efficiency.
At Hanxin, surface plates are a cornerstone of our quality assurance system. They enable us to maintain strict tolerances and deliver consistently precise components for industries such as aerospace, automotive, and medical manufacturing.
To preserve accuracy and extend the service life of a surface plate, proper handling and maintenance are essential. At Hanxin, we follow strict practices to ensure consistent performance in demanding machining environments:
Keep It Clean: Contaminants such as dust, oil, and debris can affect measurement accuracy. Clean the surface regularly using a non-abrasive solution—such as alcohol or a dedicated granite cleaner—and a soft, lint-free cloth. Avoid acidic or abrasive substances that may damage the surface.
Use Protective Covers: When the plate is not in use, cover it to prevent dust accumulation and accidental damage. Fitted covers or clean cloths are commonly used to maintain surface integrity.
Avoid Overloading: Do not exceed the plate's load capacity. Placing excessively heavy parts or tools on the surface can lead to deformation or permanent damage. Always verify weight limits before use.
Distribute Weight Evenly: Ensure that workpieces and fixtures are positioned to evenly distribute weight across the surface. Concentrated loads can create localized stress and accelerate wear.
Schedule Regular Calibration: Periodic inspection and recalibration by certified professionals are critical to maintaining accuracy. Over time, even granite plates may develop wear patterns, particularly in high-use zones, which must be corrected to stay within tolerance.
Ensure Proper Support: Mount the surface plate on a stable, level stand specifically designed for its size and weight. Improper or uneven support can cause deflection, directly impacting measurement precision.
By following these best practices, surface plates remain reliable reference tools, supporting high-precision machining, inspection, and assembly processes over the long term.
While surface plates are essential for precision work, they also come with practical limitations that machinists and engineers must account for:
Handling large components often requires oversized surface plates, which can be costly and occupy substantial floor space. Shops must balance plate size with available workspace and typical part dimensions.
Although granite offers excellent thermal stability, extreme temperature fluctuations, vibrations, or uneven flooring can still impact accuracy. For best results, surface plates should be used in a controlled environment with minimal external disturbance.
Higher-grade plates, such as Grade AA, deliver superior accuracy but come at a higher cost. Not every application requires laboratory-level precision, so selecting the appropriate grade based on actual measurement needs is key to optimizing investment and performance.
