T-Slot Table or Tapped & Drilled Plate? — Which Workholding Surface Should You Use?

Choosing between a T-slot table and a tapped & drilled (tooling) plate is one of the most common decisions a machine shop, prototyping lab, or metal fabrication workshop faces. Both options allow you to clamp parts and fixtures securely, but they are designed for different working styles and production needs.

This article explains the differences, compares advantages and disadvantages, and provides a clear checklist to help you choose the right workholding surface for your application.

Quick Summary — TL;DR

• ·  T-slot table: Best for flexibility and heavy, variable work. Ideal when you frequently reposition clamps or work with large or irregular parts. Commonly used in welding tables and general-purpose milling machines.

• ·  Tapped & drilled (tooling) plate: Best for repeatability and precision. Ideal for production runs, fixture-based machining, and fast, repeatable setups using a standardized hole grid.

What Are They?

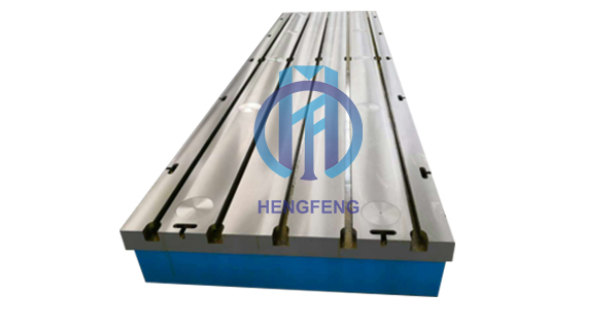

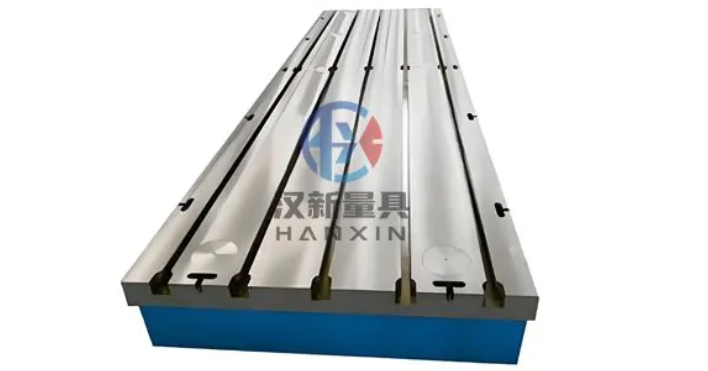

T-slot Table

A T-slot table is a machine table with T-shaped grooves running along its surface. T-nuts slide inside these slots, allowing clamps and fixtures to be positioned anywhere along the slot length. This design provides maximum flexibility and is standard on most conventional milling machines and many welding and fabrication tables.

Tapped & Drilled Plate (Tooling / Fixture Plate)

A tapped and drilled plate is a flat plate—usually aluminum, cast iron, or steel—machined with a regular grid of threaded holes and often dowel pin holes. The plate is mounted on top of a machine table (often a T-slot table) to create a modular and repeatable fixturing surface. These plates are widely used in CNC machining and production environments.

Side-by-Side Comparison

When to Choose a T-slot Table

A T-slot table is the better choice if:

• ·  You frequently change setups and need maximum flexibility

• ·  You work with large, long, or irregularly shaped workpieces

• ·  Your process involves welding, grinding, or heavy chip production

• ·  You want a durable, low-maintenance surface that is easy to clean

T-slot tables are especially popular in fabrication shops, welding fixtures, and prototype machining where part geometry changes constantly.

Practical tip: Many shops use a T-slot table as a base and add removable subplates when higher precision or repeatability is required.

When to Choose a Tapped & Drilled (Tooling) Plate

A tooling plate is the better option if:

• ·  You need high repeatability and accurate part location

• ·  You run small to medium batch production

• ·  You rely on modular fixtures, vises, or locating pins

• ·  You want to reduce setup time for recurring jobs

Tooling plates allow fixtures to be mounted in the same location every time, making them ideal for CNC machining environments where consistency and speed matter.

Material selection also matters: aluminum plates are lightweight and easy to handle, while cast iron or steel plates offer higher rigidity and vibration damping.

The Hybrid Approach

Many modern shops use a hybrid setup: a T-slot table with one or more removable tapped and drilled tooling plates. This allows operators to switch between flexible clamping and high-precision fixturing depending on the job.

This approach maximizes versatility while protecting the machine table and improving long-term productivity.

Practical Checklist: How to Decide

Ask yourself the following questions:

1. How often do setups change?

• ·  Very often → T-slot table

• ·  Repeatable jobs → Tooling plate

2. Do you need precise, repeatable positioning?

• ·  Yes → Tooling plate

3. Will welding or heavy contamination occur?

• ·  Yes → T-slot table or protected tooling plate

4. Is setup time critical?

• ·  Yes → Tooling plate

5. Are you building multiple fixtures for similar parts?

• ·  Yes → Tooling plate system

Installation & Best Practices

• ·  Protect tapped holes from weld spatter and chips using plugs or covers

• ·  Clean T-slots regularly to maintain accuracy

• ·  Use subplates to avoid modifying the main machine table

• ·  Standardize hole patterns and clamping hardware across machines for efficiency

FAQ

Which is more precise: a T-slot table or a tapped plate?
A tapped and drilled tooling plate with dowel pins generally offers better repeatability and locating accuracy.

Are tooling plates worth the extra cost?
For repeat production and fixture-based machining, tooling plates often pay for themselves by reducing setup time and errors.

Can I combine both systems?
Yes. Mounting a tooling plate on a T-slot table is a common and highly effective solution.

Final Recommendation

If your work involves frequent changeovers, large parts, or fabrication and welding, a T-slot table is the most practical choice. If your priority is precision, repeatability, and fast setups for production machining, a tapped and drilled tooling plate is the better option.

For most workshops, the best solution is a hybrid setup—using T-slots for flexibility and removable tooling plates for precision when needed.
