Webbed-End vs Open-End Angle Plates: Strength, Access, and Applications

Angle plates provide a rigid 90-degree reference for holding workpieces vertically during machining, inspection, layout and fixture assembly. Although many angle plates appear similar, the structure at their ends can significantly affect rigidity, clamping access and setup flexibility.

Two common configurations are the webbed-end angle plate and the open-end angle plate. A webbed model incorporates reinforcing webs or gussets between its horizontal and vertical faces. An open-end model leaves the ends unobstructed, providing additional space for clamps, bolts, workpieces and cutting-tool access.

Neither design is universally better. A webbed angle plate is often selected when stiffness and resistance to deflection are priorities. An open-end angle plate is generally more suitable when unrestricted access and flexible fixture positioning are more important.

This guide explains how the two designs differ and how to choose the appropriate cast iron angle plate for a machining or inspection setup.

What Is an Angle Plate Used For?

A precision angle plate creates a vertical working surface that is nominally perpendicular to its base. The base is secured to a machine table, surface plate or fixture base, while the component is located and clamped against the upright face.

Typical operations include:

· Milling the side or end of a component

· Drilling or boring holes perpendicular to a reference face

· Grinding surfaces in a vertical orientation

· Inspecting squareness, alignment or component position

· Holding parts during marking and layout

· Building repeatable machining or inspection fixtures

· Supporting vises, subplates and auxiliary fixtures

Slots or T-slots may be incorporated into one or both working faces. These features allow clamping hardware to be repositioned for different workpiece sizes and fixture arrangements.

It is important to separate two different design decisions:

1. Webbed end or open end describes the supporting structure at the ends of the angle plate.

2. Plain, slotted or T-slotted describes the mounting pattern on its working faces.

For example, both webbed-end and open-end plates can be manufactured with slotted working surfaces.

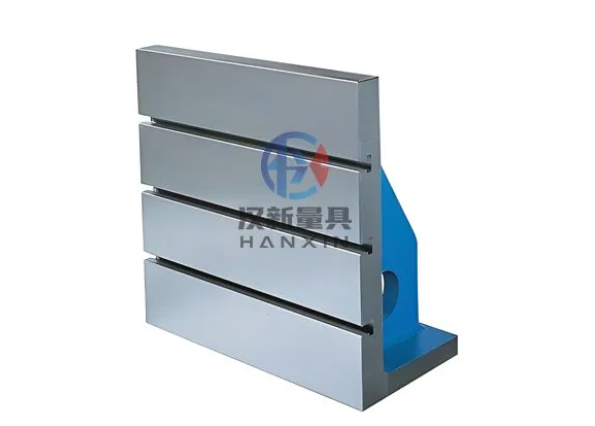

What Is a Webbed-End Angle Plate?

A webbed-end angle plate has reinforcing sections connecting the horizontal base to the upright face. Depending on the size and design, these reinforcements may appear as full end webs, smaller gussets or a heavier ribbed structure.

The purpose of the web is to increase structural stiffness around the 90-degree junction. When a clamped workpiece or cutting operation applies force to the upright face, the web helps resist bending and angular movement.

This makes a slotted webbed-end angle plate particularly useful for setups involving:

· Relatively high cutting forces

· Heavy or tall workpieces

· Components mounted away from the base

· Boring, milling or grinding operations

· Repetitive fixtures requiring consistent geometry

· Large angle plates where deflection must be controlled

Webbing can improve stiffness without requiring the entire angle plate to be solid. A well-designed ribbed casting therefore provides an efficient balance among rigidity, weight and material distribution.

However, webs occupy space at the ends of the plate. They can restrict side access to nuts, clamps and workpieces, especially in compact setups.

What Is an Open-End Angle Plate?

An open-end angle plate does not have a closing web across either end of its L-shaped structure. This leaves the internal area between the horizontal and vertical faces accessible from the side.

The principal advantage is setup freedom. Operators can reach through the end to install bolts, tighten nuts, position clamps or accommodate a component that extends beyond the plate.

An open-end slotted angle plate can be a practical choice for:

· Long workpieces that extend beyond the plate

· Through-bolting arrangements

· Fixtures requiring access from both sides

· Irregular components with projecting features

· Inspection setups using probes or indicators

· Low- or moderate-force machining

· Frequently changed workholding configurations

An open design can also simplify setup when bolts must be inserted from the side or when a conventional spanner cannot reach hardware behind the workpiece.

The tradeoff is that removing the end webs generally reduces structural reinforcement. The actual difference depends on the casting geometry, wall thickness, dimensions, material and load direction. An open-end plate should therefore not automatically be considered unsuitable for machining, but its rigidity must be evaluated against the intended operation.

Webbed-End vs Open-End Angle Plates: Quick Comparison

How the End Structure Affects Strength

Machining forces applied to a workpiece are transferred through the clamps, the vertical face, the 90-degree junction and finally into the machine table. The farther the workpiece or cutting point is positioned from the base, the greater the bending moment acting on the upright face.

A webbed structure shortens and reinforces this load path. It helps the upright face resist movement relative to the base, which can reduce vibration and deflection during machining.

This is especially relevant when:

· The workpiece is clamped near the top of the plate

· A cutter applies force away from the supported corner

· The plate has a large vertical face

· The operation includes interrupted cutting

· Surface finish depends on a highly stable fixture

· Several parts are mounted on one fixture

Nevertheless, the word “webbed” is not itself a load rating. A smaller or thinner webbed plate may be less rigid than a heavier open-end plate. Buyers should compare the complete design, including overall dimensions, section thickness, rib geometry, casting quality and mounting arrangement.

For demanding applications, the supplier should evaluate the actual workpiece weight, cutting direction, clamping location and unsupported distance.

How the End Structure Affects Access

The open-end design becomes valuable when fixture hardware must pass through or extend beyond the angle plate.

For example, an operator may need to:

· Insert a long bolt from behind the upright face

· Tighten a nut located inside the angle

· Position a clamp close to one end

· Allow a shaft or plate to project beyond the fixture

· Reach an internal feature with an indicator

· Remove chips from an enclosed area

· Use the same fixture for components of different lengths

In these cases, the open end can reduce setup time and eliminate the need for specially shaped clamps.

Webbed plates can still offer flexible workholding when their faces contain well-positioned slots or T-slots. However, the user must confirm that the web does not interfere with the workpiece, tool path or tightening hardware.

Which Design Is Better for Milling?

For milling, the decision should be based on cutting force and tool access.

A webbed-end plate is usually preferable when the operation generates substantial lateral force or when the component is mounted high on the vertical face. Examples include heavy side milling, boring and repeated production operations where fixture movement could affect dimensional consistency.

An open-end plate may be preferable for light milling, drilling or end machining when the component must extend through the side of the fixture. It may also make it easier to position clamps away from the cutter path.

Whichever style is used, the workpiece should be located as close as practical to the supported corner. Minimizing overhang reduces leverage on both the angle plate and the clamping system.

Which Design Is Better for Inspection?

Inspection places different demands on an angle plate than machining. There may be little external force, but squareness, flatness, repeatability and access for measuring instruments become important.

An open-end model can provide easier access for:

· Dial indicators

· Height gauges

· Probe systems

· Bore measurement tools

· Checking features close to an edge

· Inspecting long or projecting components

A webbed angle plate can provide a stable reference for larger components or repeatable checking fixtures. However, webbing alone does not determine metrology performance. The condition and accuracy of the working faces remain critical.

For precision inspection, users should confirm:

· Squareness between the base and upright face

· Flatness of the working surfaces

· Parallelism of relevant faces

· Surface finish

· Stability of the casting

· Inspection report or calibration requirements

· Support and mounting conditions during use

How to Select the Right Angle Plate

Before ordering, define the setup instead of selecting only by nominal plate size.

1. Identify the operation

Determine whether the plate will be used for milling, drilling, grinding, inspection, layout or fixture construction. Machining usually places greater emphasis on rigidity, while inspection may place greater emphasis on access and verified geometry.

2. Determine the direction of force

Consider where cutting or clamping force will enter the plate. A force applied near the top of the vertical face creates more leverage than the same force applied close to the base.

3. Check the workpiece envelope

Record the component’s length, width, height, weight and projecting features. Confirm whether any part must extend through the end of the angle plate.

4. Plan the clamping arrangement

Identify the required bolts, nuts, washers, strap clamps and stops. Check that operators can insert and tighten all hardware without interference.

5. Select the working-surface pattern

Choose among plain faces, elongated slots, T-slots or custom holes according to the required fixture flexibility. Do not assume that an open-end design automatically provides the correct mounting pattern.

6. Specify accuracy requirements

Define the required squareness, flatness and parallelism according to the operation. Avoid paying for inspection-grade accuracy when the plate will only support general fabrication, but do not use a general-purpose fixture where precision measurement is required.

7. Review customization requirements

For nonstandard workpieces, buyers may need custom overall dimensions, slot positions, threaded holes, face thicknesses or surface finishes. Supplying a workpiece drawing and proposed clamping layout helps the manufacturer evaluate the design.

Setup Practices for Better Accuracy and Safety

Regardless of end style, correct setup is essential.

· Clean the machine table, angle plate base and workpiece contact surfaces.

· Remove burrs before positioning the plate.

· Use suitable keys, stops or indicators to align the plate.

· Tighten mounting bolts progressively instead of fully tightening one point first.

· Distribute clamping force without distorting thin workpieces.

· Keep the workpiece close to the supported corner where possible.

· Confirm that clamps do not enter the cutting-tool path.

· Support long or heavy overhanging sections separately.

· Recheck alignment after final tightening.

· Inspect working surfaces regularly for damage, corrosion and raised edges.

For heavy machining or unusually tall setups, a fixture engineer should verify the complete load path rather than relying only on the angle plate’s nominal dimensions.

Frequently Asked Questions

Is a webbed-end angle plate always stronger?

Not necessarily. Webs generally increase rigidity, but strength also depends on plate dimensions, wall thickness, material, rib geometry and casting quality. Comparable designs must be evaluated before drawing a conclusion.

Can an open-end angle plate be used for milling?

Yes. Open-end angle plates are used for milling, drilling and other machining operations. They are particularly useful when side access or workpiece clearance is required. The selected plate must still provide sufficient rigidity for the intended cutting forces.

Are webbed and slotted angle plates the same?

No. “Webbed” describes the end reinforcement, while “slotted” describes the mounting features in the working faces. An angle plate can be webbed and slotted at the same time.

Which design is better for long workpieces?

An open-end design is often more convenient because the component can extend beyond the end of the plate. Additional support may still be necessary to prevent workpiece movement or sagging.

Does a webbed plate guarantee better accuracy?

No. Webbing can help the structure resist deflection, but accuracy depends on machining quality, material stability, surface condition, mounting and inspection.

Conclusion

The choice between webbed-end and open-end angle plates is fundamentally a balance between rigidity and accessibility.

Choose a webbed-end angle plate when cutting forces, workpiece height or fixture stability make resistance to deflection the main priority. Choose an open-end angle plate when bolts, clamps, measuring tools or extended workpieces require unobstructed side access.

For an effective selection, compare the complete setup rather than the end structure alone. Workpiece geometry, load direction, slot pattern, plate dimensions, accuracy requirements and clamping position should all be considered.
