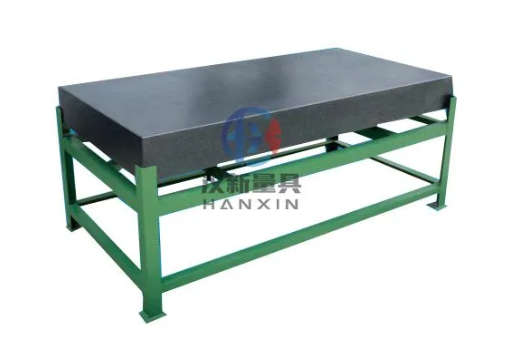

In precision engineering and metrology, granite surface plates are fundamental tools used as reference standards for inspection, calibration, and measurement. Their performance is defined primarily by their accuracy grade, which determines how flat the surface is and how much deviation is permitted. Understanding these grades is essential for selecting the right surface plate for manufacturing, quality control, or laboratory use.
Granite surface plates are not all manufactured to the same level of precision. Instead, they are classified into different grades based on internationally recognized standards such as ISO, DIN 876, and ASME B89.3.7. These standards define allowable flatness tolerances, surface finish quality, and intended application environments. While naming conventions may vary slightly between regions, the grading system generally follows the same principle: higher grades mean tighter tolerances and higher accuracy.
The most commonly recognized granite surface plate grades include Grade 00 (or AA), Grade 0 (or A), Grade 1 (or B), and Grade 2 (and sometimes Grade 3 in workshop applications). Each grade serves a specific purpose in industrial workflows, ranging from ultra-precision calibration laboratories to general workshop layout tasks.
Grade 00 represents the highest level of accuracy available for commercial granite surface plates. It is often referred to as laboratory grade or reference grade because it is used in highly controlled environments such as metrology laboratories, calibration centers, and research institutions.
The defining characteristic of Grade 00 plates is their extremely tight flatness tolerance. For example, a 1-meter plate may have a deviation of only a few micrometers across its entire surface. According to industrial standards, Grade 00 plates are typically manufactured with flatness tolerances around 3–4 µm per 250 mm area depending on size and specification.
Because of this extreme precision, Grade 00 plates are used for calibration of high-precision instruments, verification of gauge blocks and master standards, scientific measurement and research applications, and inspection of critical aerospace and automotive components.
Manufacturing a Grade 00 plate requires multiple stages of fine grinding, lapping, and stabilization. The process is time-consuming and requires strict environmental control to prevent thermal distortion or internal stress changes. As a result, Grade 00 plates are the most expensive and most carefully handled type.
Grade 0 plates, also known as inspection grade or Grade A in some systems, represent a balance between high precision and practical usability. These plates are widely used in quality control departments, inspection rooms, and precision workshops.
The flatness tolerance of Grade 0 is slightly looser than Grade 00 but still extremely accurate. In typical standards, Grade 0 plates allow approximately double the deviation of Grade 00, often around 3.5 µm for localized flatness per 250 mm zone and higher overall tolerance depending on size.
Grade 0 plates are commonly used for precision part inspection, machine setup and alignment, tool calibration in production environments, and quality assurance in manufacturing plants.
Unlike Grade 00, Grade 0 plates are designed to be used in more practical shop-floor conditions. While still requiring care, they can tolerate slightly more environmental variation such as temperature fluctuations and light vibration.
Grade 1 plates are also known as toolroom or workshop grades. These are widely used in machining shops and production environments where moderate precision is required but ultra-high accuracy is not necessary.
The flatness tolerance for Grade 1 is typically about twice that of Grade 0, often around 7 µm per 250 mm area depending on specification.
Grade 1 surface plates are suitable for general machining inspection, layout work and marking operations, assembly and tooling setup, and routine dimensional checks.
These plates are designed to be durable and stable under regular workshop conditions. They offer a good compromise between cost and performance, making them one of the most commonly used grades in manufacturing facilities.
Grade 2 and Grade 3 granite surface plates are designed for general workshop use where high precision is not critical. These are the lowest accuracy grades in most classification systems and are primarily used for basic layout work, rough inspection, and non-critical measurements.
Typical flatness tolerances can be significantly higher, for example Grade 2 around 15 µm per 250 mm area and Grade 3 around 30 µm per 250 mm area.
These plates are commonly used in heavy-duty workshops, maintenance environments, fabrication and assembly areas, and educational training workshops.
While they are less precise, they are highly durable and cost-effective, making them suitable for environments where precision is not the primary concern.
The differences between granite surface plate grades are not based on material quality alone, but primarily on flatness tolerance, manufacturing precision, and intended application.
Higher-grade plates such as Grade 00 are manufactured with extremely strict processes, including fine lapping and controlled stress relief. Lower grades undergo less intensive finishing, resulting in higher allowable deviation but improved cost efficiency and durability.
Another important difference is the working environment. Grade 00 and Grade 0 require controlled temperature and vibration-free environments, Grade 1 can be used in standard workshop conditions, and Grade 2 and 3 are suitable for rough industrial environments.
Additionally, calibration frequency varies. Higher precision plates require more frequent recalibration to maintain their accuracy, while lower grades remain stable for general use over longer periods.
Selecting the correct granite surface plate grade depends on balancing accuracy requirements with cost and working conditions. If your application involves calibration or high-precision measurement, Grade 00 or Grade 0 is necessary. For general manufacturing inspection, Grade 1 is usually sufficient. For layout and rough checks, Grade 2 or 3 provides the best cost-performance ratio.
In practice, many factories use a combination of grades: a Grade 00 or Grade 0 plate in the quality lab, and Grade 1 or Grade 2 plates on the production floor.
Granite surface plate grades define the accuracy and usability of one of the most important tools in precision engineering. From ultra-precise Grade 00 laboratory standards to durable Grade 2 workshop plates, each grade serves a specific industrial purpose.
Understanding these differences helps engineers, technicians, and quality managers choose the right tool for their measurement needs, ensuring both accuracy and efficiency in manufacturing processes.
