A welding table is more than a place to put metal parts. For precision fabrication, it becomes the foundation for positioning, clamping, assembly, and welding.
But ordinary untreated welding tables often develop the same problems after repeated use:
◆ Weld spatter sticks to the work surface
◆ Scratches and wear gradually damage the tabletop
◆ Moisture and shop conditions can lead to corrosion
◆ Frequent grinding and cleaning increase maintenance time
◆ Damaged surfaces can make accurate positioning more difficult
For fabrication shops that perform welding every day, these issues affect much more than appearance. They can influence setup efficiency, fixture positioning, maintenance costs, and the repeatability of welded components.
This is why nitrided welding tables have become an increasingly practical option for professional fabrication environments.
A nitrided welding table is a steel or cast iron welding table whose surface has undergone a nitriding treatment to improve surface hardness, wear resistance, and corrosion resistance.
Instead of simply applying a coating over the table, nitriding modifies the surface layer of the metal. This creates a harder working surface that is better suited to repeated clamping, positioning, welding, and assembly operations.
For workshops that use a welding fixture table every day, this improved surface performance can help extend the useful life of the work surface while reducing unnecessary maintenance.
Nitriding is especially valuable when combined with a 3D modular welding table, where the table surface, fixture holes, side faces, clamps, locating pins, and support tools are repeatedly used to create different welding setups.
During fabrication, the welding table is constantly exposed to:
◆ Welding heat
◆ Metal spatter
◆ Heavy workpieces
◆ Clamps and locating tools
◆ Repeated loading and unloading
◆ Sliding components
◆ Grinding dust
◆ Moisture and workshop contaminants
An untreated surface can gradually become scratched, worn, or covered with adhered spatter.
Once the working surface deteriorates, operators may spend more time grinding, cleaning, and preparing the table before beginning the next job.
A harder nitrided surface helps create a more durable foundation for repeated fabrication work.
One of the most common problems with conventional welding tables is weld spatter sticking to the tabletop.
Small molten metal droplets produced during MIG, MAG, or other arc welding processes can land on the table surface and become difficult to remove. Operators may eventually resort to scraping or grinding.
Repeated aggressive cleaning can damage the surface.
A nitrided welding table provides improved resistance to weld spatter and makes routine surface cleaning easier. Hanxin also designs its 3D welding tables with smooth precision-machined working surfaces to simplify cleanup after fabrication.
This is particularly useful in production environments where the table is used for many welding cycles every day.
Less time spent removing stubborn spatter means more time can be spent on actual positioning, assembly, and welding.
A professional welding fixture table is constantly subjected to mechanical contact.
Clamps are tightened and released. Fixtures are installed and removed. Heavy metal components are positioned across the surface. Locating tools are repeatedly inserted into fixture holes.
Over time, these operations can wear an untreated table.
Nitriding increases surface hardness and improves resistance to this type of repeated wear.
For Hanxin's current nitrided 3D welding table range, nitrided steel tables are specified at approximately HV450–500, while nitrided cast iron versions are specified at approximately HV400–500.
This harder surface is particularly valuable for:
◆ Production welding
◆ Repetitive fabrication
◆ Fixture-based assembly
◆ Automotive component manufacturing
◆ Machinery fabrication
◆ Robotic welding cells
◆ Industrial maintenance workshops
The objective is not simply to make the table harder. It is to help the table retain a usable, reliable working surface through repeated production cycles.
Rust is another common concern in welding workshops.
Welding tables may be exposed to humidity, condensation, metal dust, fingerprints, coolants, or other contaminants depending on the working environment.
Nitriding improves corrosion resistance compared with an untreated steel surface and can reduce the amount of routine surface care required.
However, no industrial table should be considered completely maintenance-free. Keeping the table dry, removing contaminants, and following proper storage and maintenance practices will still help maximize service life.
For many fabrication shops, the advantage is simple: less frequent surface maintenance and better long-term protection of the working area.
A welding table that constantly needs grinding and scraping costs the workshop time.
Imagine a fabrication shop changing setups several times every day. If operators must clean spatter, remove oxidation, and repair damaged working areas before installing the next fixture, those minutes quickly accumulate.
A nitrided welding table helps reduce these interruptions.
Its harder, more wear-resistant surface is designed to withstand repeated fabrication operations while remaining easier to maintain.
For production managers, this can provide several practical benefits:
◆ Less surface preparation between jobs
◆ Reduced aggressive grinding of the tabletop
◆ Faster fixture changeovers
◆ Cleaner positioning surfaces
◆ Lower routine maintenance workload
◆ More productive welding time
This is particularly important in high-mix fabrication environments where different components are produced on the same welding table.
Surface treatment is only one part of a professional welding table.
The table must also support accurate positioning.

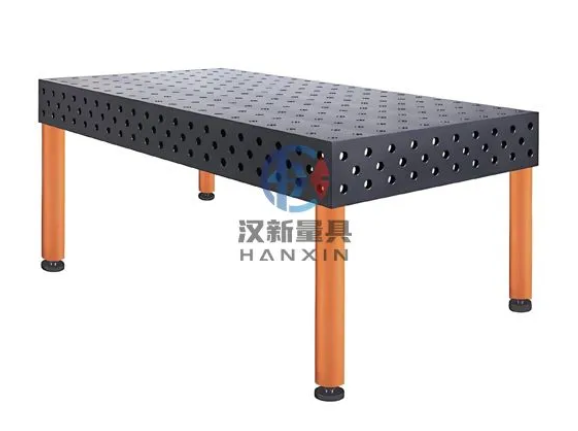

A 3D welding table uses precision-machined working surfaces and regularly spaced fixture holes to allow workpieces to be positioned, supported, clamped, and aligned.
Unlike a basic flat welding bench, a modular 3D welding table can use both the top surface and side surfaces for fixture installation.
Hanxin 3D welding tables are manufactured with five precision-machined working surfaces — one top surface and four side surfaces. The modular design allows the working area to be expanded and configured using supporting tools and fixtures.
This allows fabricators to build repeatable setups for:
◆ Frames
◆ Machine structures
◆ Cabinets
◆ Brackets
◆ Pipe assemblies
◆ Automotive components
◆ Structural fabrications
◆ Custom welded assemblies
When the same component needs to be produced repeatedly, fixture locations can be recreated without building a completely new jig for every batch.
Two common modular welding table systems are D16 and D28.
The correct choice depends mainly on workpiece size, component weight, required clamping force, and fabrication accuracy.
A D16 system uses 16 mm fixture holes.
It is generally suitable for:
◆ Small and medium components
◆ Precision fabrication
◆ Lightweight assemblies
◆ Welding laboratories
◆ Training facilities
◆ Small machinery components
◆ High-mix production
Hanxin's D16 system uses a nominal 50 mm grid spacing and is available with 100 mm or 200 mm side heights.
A D28 system uses 28 mm fixture holes and is designed for larger and heavier fabrication requirements.
Typical applications include:
◆ Heavy machinery fabrication
◆ Large welded frames
◆ Structural components
◆ Automotive production
◆ Equipment manufacturing
◆ Heavy industrial assembly
Hanxin's D28 system uses a nominal 100 mm grid spacing with a 200 mm side height.
For purchasing teams, selecting D16 or D28 should therefore be based on the actual workpiece rather than simply choosing the larger system.
Another important decision is the table material.
Both steel and cast iron can be used for modular welding tables, but each offers different characteristics.
Steel welding tables are commonly selected when strength, durability, and cost efficiency are important.
Hanxin uses Q355 steel for its steel welding table options.
They are well suited to:
◆ General fabrication
◆ Machinery manufacturing
◆ Production welding
◆ Heavy-duty shop use
◆ Modular fixture systems
Cast iron provides good dimensional stability and vibration absorption, making it attractive for fabrication environments where stability is particularly important.
Hanxin offers cast iron welding tables manufactured from HT250 or HT300 cast iron.
Both materials can be supplied with nitrided surface treatment depending on the application.
Because a modular welding table can be reconfigured for different components, it is suitable for a broad range of industries.
Common applications include:
Used for frames, brackets, structures, sheet metal assemblies, and custom welded components.
Provides repeatable positioning when welding machine bases, equipment frames, guards, supports, and mechanical assemblies.
Useful for positioning and welding automotive parts, frames, subassemblies, prototypes, and production fixtures.
Modular fixture positions help create repeatable workpiece placement for robotic or cobot welding operations.
Maintenance departments can configure one table for different repair, rebuilding, and fabrication jobs instead of maintaining multiple dedicated fixtures.
Technical schools and welding laboratories can use modular fixture systems to demonstrate positioning, clamping, joint preparation, and welding processes.
Hanxin lists applications including metal fabrication, machine manufacturing, industrial maintenance, automotive repair, aerospace work, and other production environments requiring repeatable positioning.
Surface treatment alone does not determine whether a welding table is suitable for production.
Before purchasing, consider the complete table and fixture system.
Important factors include:
Table Material
Determine whether steel or cast iron is more appropriate for your loading, stability, and production requirements.
Fixture Hole System
Choose between D16 and D28 according to component size and required clamping capability.
Table Flatness
Precision fabrication depends on a reliable reference surface.
Hole Position Accuracy
Accurate hole spacing is important when fixtures need to be reproduced across different setups.
Table Size
The table should accommodate your normal workpieces without making fixture positioning unnecessarily difficult.
Side Working Surfaces
A true 3D welding table allows fixtures to be attached to vertical surfaces as well as the top surface.
Load Capacity
Heavy fabrications require a reinforced table structure capable of supporting both components and fixtures.
Available Accessories
Clamps, locating pins, angle brackets, supports, fixture blocks, stops, and other modular components determine how flexible the system will be.
Customization
For unusual workpieces or production lines, custom dimensions and configurations may provide a better solution than a standard table.
For occasional light welding, a basic steel bench may be sufficient.
However, the requirements change when the table becomes part of the production process.
If your workshop depends on:
◆ Repeatable welding
◆ Accurate component positioning
◆ Frequent fixture changes
◆ High production volume
◆ Robotic welding
◆ Heavy industrial fabrication
◆ Reduced maintenance downtime
then a nitrided 3D welding table can provide a more practical long-term working platform.
The main benefit is not simply that the surface looks better.
A nitrided modular welding table combines surface durability, precision positioning, reusable fixturing, easier maintenance, and configuration flexibility in one fabrication system.
At Hanxin Measuring Tools, we manufacture 3D welding tables for precision welding, positioning, clamping, assembly, and industrial fabrication.
Our current 3D Welding Table range includes steel and cast iron tables, nitrided models, D16 and D28 modular systems, welding tables with fixtures, and configurable table solutions for different fabrication requirements.
Depending on the application, our nitrided 3D welding tables can be supplied with:
◆ D16 or D28 modular fixture systems
◆ Q355 steel or HT250/HT300 cast iron construction
◆ Five precision-machined working surfaces
◆ Standard or nitrided surface treatment
◆ Modular clamps, locating tools, supports, and fixture accessories
◆ Reinforced structures for industrial loads
◆ A wide selection of standard table dimensions
◆ Custom dimensions and configurations upon request
Our current product specifications include table horizontal precision of ±0.1/1000 mm, vertical precision of ±0.1/200 mm, drilling center accuracy of ±0.03 mm, and configurations with loading capacity up to 2 tons. Other table sizes can also be manufactured according to project requirements.
Whether you are building small precision assemblies, automotive components, machinery frames, or large welded structures, the right welding table should make positioning easier, setups more repeatable, and daily fabrication more efficient.
Explore our 3D Welding Table range to compare D16, D28, steel, cast iron, nitrided, and modular fixture table options. If you have a specific workpiece size, weight, welding process, or fixture requirement, contact Hanxin with your project details and we can help determine a suitable table configuration.
