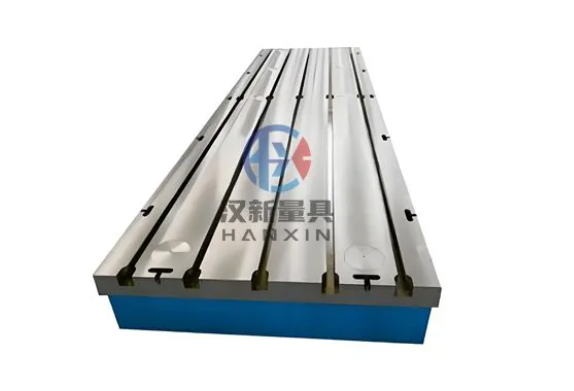

A T-slot bed plate (also known as a T-slotted bed plate or T-slot cast iron table) is a precision industrial work platform widely used for machinery assembly, equipment debugging, inspection, welding, and maintenance operations. It features a machined surface with T-shaped grooves designed to securely fix workpieces and fixtures during industrial processing.
Manufactured according to strict national metrology and industrial standards, the cast iron T-slot bed plate is made from high-strength materials to ensure long-term stability, accuracy, and durability. It serves as a fundamental base platform in mechanical workshops and industrial production environments.
In practical applications, a T-slot bed plate is commonly used by fitters and technicians to hold components in place during equipment assembly, calibration, and repair work, ensuring precise alignment and operational stability.
Typical specifications range from 100×100 mm to 3000×6000 mm, making it suitable for both small precision tasks and large-scale industrial applications.
The T-slot bed plate is typically manufactured using high-strength gray cast iron HT200–300, which provides excellent rigidity, wear resistance, and vibration absorption performance.
The working surface hardness is generally maintained at HB170–240, ensuring durability under heavy industrial use.
To improve structural stability and eliminate internal stress, the casting undergoes a strict treatment process including artificial annealing at 600°C–700°C and natural aging for 2–3 years.
This dual stabilization process significantly enhances dimensional accuracy and long-term performance stability.
In addition, the working surface is processed using a precision scraping technique, which improves flatness and ensures high contact accuracy.
The working surface of a T-slot bed plate can be customized according to different industrial requirements. Common machining options include T-shaped grooves (standard configuration), V-shaped grooves, U-shaped grooves, round holes, and long slots.
These structural features allow the platform to securely fix various mechanical parts, power equipment, and assembly fixtures.
To ensure high precision, some plates undergo scraping and hand-finishing processes, followed by color inspection testing to verify surface accuracy and contact performance.
T-slot bed plates are widely used across multiple industrial sectors, including mechanical equipment assembly, machine tool debugging, welding and riveting operations, precision inspection and measurement, maintenance and repair workshops, and heavy machinery installation platforms.
Because of their excellent load-bearing capacity and stable structure, they are considered an essential foundation tool in industrial manufacturing environments.
According to national metrology verification standards, T-slot bed plates are classified into four accuracy grades: Grade 0 (highest precision), Grade 1, Grade 2, and Grade 3.
The smaller the grade number, the higher the precision level. Grade 0 and Grade 1 plates are commonly used for high-precision inspection and calibration tasks, while Grade 2 and Grade 3 are typically used for general industrial assembly and field operations.
Flatness is one of the most important performance indicators of a T-slot bed plate. It is divided into AA Grade, A Grade, and B Grade.
AA Grade flatness is calculated as (μm) = 1 + 1.6D², where D represents the diagonal length or diameter of the plate, and is used in high-precision laboratory environments.
A Grade flatness is approximately twice the error of AA grade and is commonly used in inspection rooms for precision measurement tools.
B Grade flatness is approximately four times the error of AA grade and is used for general workshop inspection and marking operations.
Different accuracy levels correspond to different flatness formulas: 000 Grade: 1 × (1 + d / 1000), 00 Grade: 2 × (1 + d / 1000), 0 Grade: 4 × (1 + d / 1000), 1 Grade: 8 × (1 + d / 1000), 2 Grade: 16 × (1 + d / 1000), 3 Grade: 40 × (1 + d / 1000). These formulas are used to evaluate and control machining precision during production and inspection.
To ensure quality and performance, T-slot bed plates must meet strict technical standards.
The working surface must be free from sand holes, cracks, porosity, shrinkage, scratches, rust, or other defects.
The casting surface must be fully cleaned and coated with protective paint.
For accuracy grades 0–3, small sand holes (diameter < 15 mm) may be repaired, but no more than 4 per surface, with a minimum spacing of 80 mm.
Material must be high-quality gray cast iron or alloy cast iron.
Surface hardness must be within HB170–220 or HB187–255 depending on requirements.
Surface roughness for scraping processes (Grade 3) should not exceed Ra 5 μm.
Scraped surfaces must be inspected using color contact testing to ensure accuracy.
Contact point distribution requirements include Grade 1 plate ≥20 points per 25×25 mm area, Grade 2 plate ≥12 points per 25×25 mm area, and Grade 3 plate no strict requirement.
The production process of a T-slot bed plate includes multiple stages.
First is casting preparation, where drawings are used to create molds, followed by batching, molding, drying, casting, sand removal, cleaning, and inspection.
Second is machining, including surface processing, marking, and dimensional inspection.
Third is precision finishing, where the surface is leveled manually using scraping techniques, followed by precision measurement and inspection.
Fourth is surface treatment and packaging, including finishing, anti-rust treatment, marking, packaging, and storage.
The load-bearing capacity of a T-slot bed plate refers to its ability to resist deformation under uniform load per unit area.
In practical use, it describes how much weight the plate can support while maintaining accuracy and stability without affecting its normal function.
Proper structural design ensures that casting and machining tolerances are controlled within acceptable limits, typically within 10% weight deviation.
To ensure safe and long-term performance, the working surface must be free from rust, scratches, and physical damage.
Casting defects such as porosity, shrinkage, sand inclusion, and cracks are not acceptable.
Lifting positions must be designed properly to avoid deformation during transportation.
Stress relief and demagnetization treatment should be performed before use.
Verticality tolerance between working surface and side faces must meet GB1184-80 standards (level 12).
Hardness must remain within HB170–220 or HB187–255 depending on grade.
Surface roughness, flatness, contact points, and deformation limits must be strictly controlled.
