Choose the Right Surface Plate for Your CMM Application
A CMM surface plate must provide a stable reference and match the machine structure, measuring range, workpiece load and fixturing method. Hanxin supplies both granite and cast iron configurations for different metrology and industrial inspection requirements.

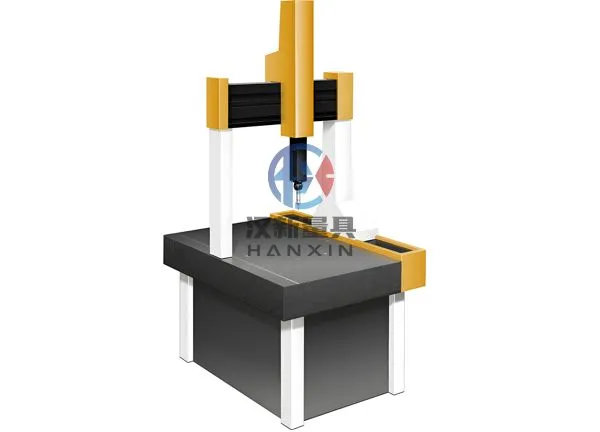

Granite Surface Plate for CMM
A granite surface plate for CMM is the preferred option when corrosion resistance, a non-magnetic working surface and a stable precision reference are priorities.
Hanxin models cover sizes from 1000 × 750 mm to 3000 × 5000 mm, with grade 0 or grade 1 accuracy, an HS70 working-surface hardness and a ground finish. T-slots and custom dimensions can be specified for the required installation.

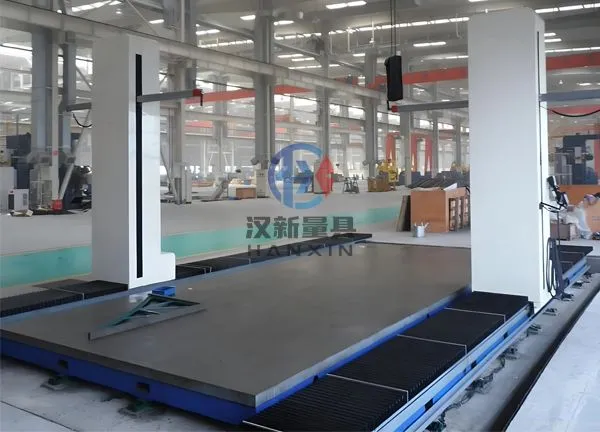

Cast Iron Surface Plate for CMM
A cast iron surface plate for CMM is suitable when the project requires a rigid metal platform, extensive T-slot clamping or a hand-scraped or finish-milled surface.
Hanxin uses HT200–300 cast iron with a working-surface hardness of HB160–240. Standard product information covers sizes from 750 × 1000 mm to 3000 × 8000 mm and precision grades 1–3.
Granite vs. Cast Iron CMM Surface Plates
| Selection Factor | Granite Surface Plate | Cast Iron Surface Plate |
|---|
| Material | Granite | HT200–300 cast iron |
| Size range | 1000 × 750 to 3000 × 5000 mm, or custom | 750 × 1000 to 3000 × 8000 mm, or custom |
| Precision grades | Grade 0–1 | Grade 1–3 |
| Surface configuration | Ground finish with T-slots | Hand-scraped or finish-milled surface with T-slots |
| Material characteristics | Non-magnetic and corrosion-resistant; commonly selected for precision metrology | Metal platform suited to clamping, machining and customized slot layouts |
| Purchasing priority | Reference stability and clean metrology use | Large size, structural rigidity and workholding flexibility |
The final material should be selected according to the CMM design and the required flatness, load, support and mounting arrangement—not by material alone. For more general options, see our granite surface plates and cast iron surface plates.
Applications
◆ Reference and support surfaces for coordinate measuring machines
◆ Dimensional inspection and quality-control stations
◆ Precision part setup, alignment and gauging
◆ Large-component inspection with T-slot fixturing
◆ Custom bases for measuring and inspection equipment
Why Choose Hanxin?
Manufacturing Experience Since 1978: Decades of experience in precision granite and cast iron surface plates for metrology and industrial inspection.
Integrated In-House Production: Design, casting, machining, stone processing and inspection are completed under one manufacturing system for consistent quality.
Custom CMM Surface Plates: Custom sizes, precision grades, T-slots, threaded holes, inserts and mounting patterns are available according to your drawings.
Reliable Quality Inspection: Finished plates are checked using professional metrology equipment and supplied with an ex-works inspection report. Calibration certificates are available upon request.
Export and Installation Support: We provide export packaging and can support leveling pads, stands and other installation requirements.
