In the world of precision machining, fixture design, and metalworking, angle plates play a pivotal role in ensuring accurate, repeatable setups. They serve as the backbone for holding workpieces at precise angles—most commonly 90 degrees—during machining, inspection, and assembly processes. While traditional angle plates have been the industry standard for decades, the advent of angle plates with locator grids has introduced a paradigm shift in accuracy, versatility, and efficiency. In this comprehensive article, we delve into the differences, advantages, and use-case scenarios to determine which option offers the best value for modern machining operations.
Traditional angle plates are typically made from high-strength cast iron or steel, offering exceptional rigidity and stability. Their primary function is to provide a stable, right-angle support for workpieces during drilling, milling, grinding, or assembly. These plates often feature a smooth, precision-ground surface with drilled and tapped holes to facilitate clamping.
· Material Strength: Made from cast iron or steel, offering excellent wear resistance.
· Surface Precision: Ground surfaces ensure perpendicularity and flatness within tight tolerances.
· Hole Patterns: Drilled and tapped holes allow for secure clamping of workpieces.
· Weight and Stability: Heavier construction minimizes vibrations during machining.
While traditional angle plates are reliable and straightforward, they come with certain limitations in terms of versatility and speed of setup.

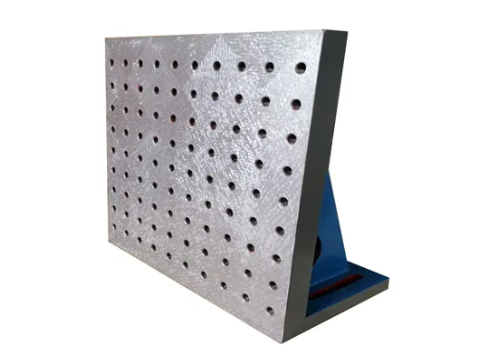

Angle plates with locator grids build upon the traditional design by incorporating a precision grid pattern of recessed or raised reference points on the mounting surfaces. These grids act as locator references for clamps, pins, or fixtures, dramatically reducing setup time and improving repeatability.
· Integrated Locator Grid: Predefined reference points enable exact positioning of workpieces and fixtures.
· Enhanced Versatility: Supports multiple workpiece configurations without requiring custom jigs.
· Reduced Setup Time: Precise grid layout simplifies alignment, reducing human error.
· Improved Accuracy: Consistent positioning enhances repeatability across production runs.
· Compatibility: Can be used with standard clamps, pins, and accessories.
When comparing these two types of angle plates, material and build quality play a crucial role in performance:
1. Cast Iron Construction: Both traditional and grid angle plates often use cast iron due to its vibration damping properties and dimensional stability.
2. Stress Relief and Heat Treatment: High-quality plates undergo stress-relief treatments to prevent warping and ensure long-term accuracy.
3. Precision Machining: Surfaces are ground and lapped to ensure flatness, and edges are perpendicular to within microns, especially in grid plates where alignment depends on these tolerances.
4. Durability: Grid patterns are designed to resist wear from repeated clamping, ensuring longevity in high-volume operations.
Accuracy is the primary consideration in selecting an angle plate. Traditional plates provide high flatness and perpendicularity, but their repeatability depends heavily on operator skill and external measurement tools. In contrast, locator grid angle plates deliver a built-in reference system, allowing operators to position workpieces with unmatched repeatability.
Performance Comparison:
| Feature | Traditional Angle Plate | Angle Plate with Locator Grid |
|---|---|---|
| Perpendicular Accuracy | ±0.01 mm typical | ±0.005 mm possible due to grid references |
| Repeatability | Operator-dependent | Grid-enabled, high repeatability |
| Setup Time | Moderate | Reduced by 30–50% on average |
| Workpiece Flexibility | Limited | High, multiple positions possible |
| Clamping Ease | Manual alignment required | Grid-based alignment simplifies clamping |
The table highlights the substantial advantages that grid-equipped angle plates offer in modern, high-precision environments, particularly in batch production.
Implementing angle plates with locator grids can significantly improve workflow efficiency in machine shops:
1. Quick Setup for Batch Production: Repetitive machining tasks benefit from predefined locator points, reducing the need for constant measurement and repositioning.
2. Error Reduction: Grid references minimize misalignment, lowering scrap rates and improving yield.
3. Integration With CNC Systems: Grid patterns can be directly referenced in CNC setups, streamlining automated workflows.
4. Reduced Fixturing Costs: Instead of custom jigs for every workpiece, the grid allows standardized clamping, reducing setup investment.
By contrast, traditional plates require careful alignment and potentially custom fixtures for each unique job, increasing labor and production costs.
Traditional Angle Plates are widely used in:
· Small workshops with low production volume
· Tasks where flexibility is not critical
· Inspection and metrology setups requiring absolute stability
Angle Plates with Locator Grids excel in:
· High-volume manufacturing where repeatability is critical
· CNC machining centers requiring quick workpiece changes
· Precision assembly requiring consistent positioning
· Situations with multiple workpiece geometries
The modern trend favors locator grid angle plates for industrial environments where efficiency, repeatability, and accuracy cannot be compromised.
Proper maintenance extends the life of both types of angle plates:
· Surface Cleaning: Keep surfaces free of debris and oils to prevent wear.
· Regular Inspection: Check for perpendicularity and flatness periodically.
· Protective Coating: Apply rust-preventive coatings to cast iron surfaces.
· Clamping Considerations: Avoid excessive clamping force that could deform the grid points or plate.
Locator grid plates require minimal additional care, as their recessed or raised points are designed to withstand routine usage without losing precision.
While traditional angle plates are typically less expensive upfront, the long-term value of grid-equipped plates is undeniable:
· Reduced setup time translates to higher throughput.
· Lower scrap and error rates reduce material waste.
· Less dependency on operator skill improves overall shop efficiency.
· Versatile fixturing reduces the need for multiple jigs.
For shops prioritizing high productivity, precision, and cost efficiency, investing in angle plates with locator grids yields measurable returns over time.
After analyzing accuracy, repeatability, workflow efficiency, applications, and long-term cost, it is clear that angle plates with locator grids outperform traditional angle plates in modern machining contexts. While traditional plates remain reliable and cost-effective for basic setups or low-volume work, the integrated precision and versatility of locator grid plates make them the superior choice for high-precision, high-volume manufacturing.
By combining sturdy cast iron construction, precision-ground surfaces, and innovative locator grids, these angle plates set a new standard for fixture performance. They not only improve setup speed and accuracy but also enhance overall operational efficiency, ultimately leading to reduced costs, higher productivity, and consistent quality.
