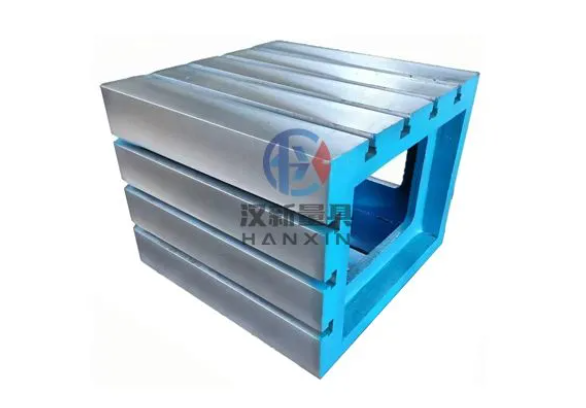

In any precision-focused workshop—whether dedicated to machining, fabrication, inspection, or toolmaking—the quality of your measuring and positioning tools directly affects your final product. One often overlooked but essential tool is the cast iron square box. While simple in appearance, this rigid, right-angled structure plays a critical role in vertical alignment, squareness inspection, and stable workholding.
Choosing the right cast iron square box is not just about picking a size off a catalog page. It requires understanding your application, precision requirements, material quality, and long-term performance expectations. This guide will walk you through the key factors to consider before making your decision.
A cast iron square box is primarily used for checking perpendicularity, marking out 90-degree reference lines, and supporting workpieces during machining or inspection. Unlike flat angle plates, square boxes are enclosed structures, offering enhanced rigidity and multi-surface reference planes. This design increases structural stability and reduces deformation under load.
If your workshop frequently performs vertical alignment tasks, right-angle inspections, or setup operations on surface plates, a square box becomes an indispensable tool.
The performance of a square box depends heavily on the grade of cast iron used in its manufacturing. High-quality square boxes are typically produced from HT200 or HT250 gray cast iron. These materials offer:
· Excellent vibration damping
· Strong compressive strength
· Good wear resistance
· Dimensional stability over time
Equally important is stress relief treatment. During casting, internal stresses form within the material. If not properly relieved through natural aging or artificial aging processes, these stresses can cause distortion later—especially in workshops with temperature fluctuations. Always confirm that the manufacturer performs proper stress-relief treatment.
Lower-grade cast iron may reduce upfront cost, but it can compromise long-term accuracy and durability.
Not all workshops require the same level of precision. Cast iron square boxes are commonly produced in different accuracy grades. Higher grades offer tighter tolerances for flatness and perpendicularity.
If your workshop focuses on:
· Calibration and inspection work → Choose higher precision grades
· Tool and die manufacturing → Medium to high precision recommended
· General fabrication and welding alignment → Standard workshop grades are often sufficient
Over-specifying can unnecessarily increase cost, while under-specifying may cause rework and measurement errors. The key is to match precision with real operational needs.
Size is one of the most practical considerations. Square boxes are available in various dimensions, often ranging from 100 mm to 500 mm or more.
When deciding on size, consider:
· The typical size of workpieces you handle
· Available workspace and surface plate dimensions
· Portability requirements
· Weight limitations
Larger square boxes provide better stability and support for bigger parts. However, they are significantly heavier and may require lifting equipment. Smaller units offer flexibility and ease of movement but may limit application range.
Selecting a size that covers 80–90% of your typical applications is often the most practical strategy.
Two key geometric characteristics define a square box’s precision:
Each face must be finely machined and, ideally, hand-scraped to achieve precise flatness. Poor flatness affects measurement accuracy and part alignment.
The 90-degree relationship between adjacent faces is the core function of the tool. Even minute angular deviations can lead to compounded errors during setup and inspection.
Reliable manufacturers use coordinate measuring machines (CMM) or master squares for verification. Always request an inspection report when accuracy is critical.
A well-finished square box reflects professional manufacturing standards. Look for:
· Smooth, burr-free edges
· Even scraping patterns on precision surfaces
· Protective anti-rust oil coating
· Cleanly machined mounting or clamping holes (if included)
In humid or coastal environments, additional rust prevention measures are especially important. Cast iron is durable but susceptible to corrosion if not properly maintained.
Beyond accuracy, structural strength determines how well the square box resists deformation under load. The enclosed box design should feature sufficient wall thickness and internal ribbing for reinforcement.
A lightweight structure might seem convenient, but excessive weight reduction can compromise rigidity. A stable, well-balanced structure ensures reliable support during heavy-duty operations.
When selecting workshop precision tools, the manufacturer’s experience matters. A knowledgeable producer understands casting technology, machining processes, stress relief treatment, and precision inspection.
Look for suppliers who provide:
· Material certification
· Detailed inspection reports
· Customization options
· Proper export packaging
· Technical support
Good technical communication is especially valuable if your workshop has specialized requirements or non-standard specifications.
Price should never be the only deciding factor when purchasing precision equipment. A poorly manufactured square box may lose accuracy over time, require re-machining, or even need replacement. This can disrupt operations and increase overall costs.
A high-quality cast iron square box, when properly maintained, can serve reliably for many years. When evaluating cost, consider:
· Expected service life
· Recalibration frequency
· Maintenance requirements
· Impact on product accuracy
In precision environments, reliability pays for itself.
Even the best square box requires proper care. To maintain performance:
· Clean surfaces before and after use
· Apply a light anti-rust coating regularly
· Store in a dry, stable environment
· Avoid impacts or overloading
· Schedule periodic accuracy checks if used in inspection applications
Routine maintenance preserves both the tool and the integrity of your measurements.
Choosing the right cast iron square box for your workshop is a decision that directly affects alignment accuracy, machining precision, and overall efficiency. By carefully considering material quality, precision grade, size, structural rigidity, and manufacturer credibility, you can select a tool that supports your operations for years to come.
In precision work, stability and squareness are not optional—they are foundational. Investing in the right square box ensures your workshop maintains the accuracy standards your projects demand.
