How to Use an Angle Plate on a Milling Machine: Setup, Alignment, and Clamping

An angle plate lets a machinist hold a workpiece vertically or at 90 degrees to the milling machine table. It is especially useful when the surface to be milled, drilled, bored, or faced cannot be reached in a conventional vise setup. However, simply placing the plate on the table and tightening a few bolts is not enough. Chips under the base, uneven clamping, poor alignment, or unsupported cutting forces can introduce error and make the setup unsafe.

This guide explains how to use an angle plate on a milling machine, from choosing the correct plate and preparing the contact surfaces to indicating the fixture, clamping the workpiece, and checking the setup before the first cut.

What Is an Angle Plate Used for on a Milling Machine?

An angle plate is a rigid, L-shaped workholding fixture with two precision faces arranged at a nominal right angle. On a milling machine, one face is secured to the table while the upright face supports the workpiece. Plain plates are suitable for custom clamping arrangements, while slotted, T-slotted, webbed, and grid-style plates provide more mounting options.

Typical milling applications include:

• ◆  machining the end or side of a long component;

• ◆  drilling holes through a vertical face;

• ◆  boring a feature whose axis must remain parallel to the machine table;

• ◆  holding an irregular casting that does not fit securely in a vise;

• ◆  machining two faces that must remain square to one another; and

• ◆  mounting several smaller parts for repeat production.

Angle plates are used where flatness, squareness, and parallelism matter in toolroom and production work. The fixture does not create accuracy by itself, however. The final result also depends on the condition of the machine table, the plate, the locating surfaces, the clamps, and the alignment procedure.

Tools and Equipment Needed

Prepare the workholding and inspection equipment before loading the angle plate. A typical setup may require:

• ◆  a cast iron or steel angle plate of suitable size and load capacity;

• ◆  T-slot nuts, studs, flange nuts, step blocks, and strap or toe clamps;

• ◆  a dial test indicator or dial indicator with a spindle-mounted holder;

• ◆  a soft-face or dead-blow mallet;

• ◆  parallels, precision blocks, packing pieces, or adjustable supports;

• ◆  a machinist's square for a preliminary check;

• ◆  an edge finder, probe, or indicator for setting the work offset;

• ◆  a brush, vacuum, lint-free cloth, and a fine stone for cleaning; and

• ◆  the correct wrench and a torque wrench if the fixture manufacturer specifies a tightening torque.

Choose a plate with enough face area to support the part and enough slots or threaded holes to create a balanced clamping pattern. The plate and hardware must also be rated for the combined workpiece weight and machining load. When standard sizes do not provide the necessary hole pattern or clearance, a custom cast iron angle plate may simplify the fixture and reduce the need for improvised adapters.

Angle Plate Setup Checklist

Step 1: Clean and Inspect Every Contact Surface

Stop the spindle, isolate the machine as required by the shop's safety procedure, and remove chips from the table. Clean the underside of the angle plate and the machine table around every contact point. Do not slide a heavy plate across the table because trapped swarf can score both surfaces.

Run a clean hand stone lightly over the machine table and the base of the fixture only to identify and remove raised burrs; do not use it to reshape a precision surface. Wipe both faces again after stoning. Inspect the plate for dents, rust, cracked webs, damaged slots, and evidence of a previous crash. Confirm that studs, nuts, washers, and clamps have undamaged threads and adequate engagement.

Before installing the workpiece, check whether the plate sits firmly on the table. If it rocks, remove it and find the cause. Pulling a rocking fixture flat with bolts can distort the plate, damage the table, or hide contamination beneath the base.

Step 2: Position and Loosely Secure the Angle Plate

Place the plate so that the upright face is oriented for the planned operation. Consider cutter access, spindle travel, chip evacuation, loading space, and the direction of cutting force. Whenever practical, arrange the cut so the primary force pushes the workpiece into its locators and pushes the angle plate toward the table rather than trying to lift or peel either component away.

Install T-slot nuts and studs before the plate blocks access to the table slots. Use at least two appropriately positioned hold-down points, and add more when the plate size, workpiece mass, or cutting load requires them. Keep the clamps low and close to the fixture. Make sure each strap clamp is supported correctly and bears on a solid clamping pad rather than a thin rib or unfinished edge.

At this stage, tighten the nuts only enough to seat the plate while still allowing controlled adjustment with a soft-face mallet. Never strike a precision face with a steel hammer.

Step 3: Align the Angle Plate with the Machine Axis

Mount a dial test indicator in the spindle and bring the stylus into contact with the upright reference face. Select the face that the manufacturer identifies as the precision locating surface, not an as-cast area or an unverified slot wall.

To make the face parallel to the X-axis, traverse the table in X while observing the indicator. For alignment to the Y-axis, traverse in Y. Start near one end of the usable face, zero the indicator, and move toward the other end. If the reading changes, tap the appropriate end of the plate gently and repeat the sweep. Use the longest practical sweep because it reveals angular error more clearly than a short measurement distance.

Once the reading meets the setup tolerance, tighten the mounting nuts gradually in an alternating sequence. Sweep the face again after each tightening stage. Clamping can rotate or distort the fixture, so the alignment reading before final tightening is not the final result.

If perpendicularity to the table is critical, check the upright face vertically with an indicator or use the shop's approved squareness procedure. A precision square and indicator are commonly used for traditional squareness checks, but the reference artifact, indicator uncertainty, machine geometry, and measurement length all affect the result. Compare the measured error over the actual inspection length with the tolerance on the part drawing; do not assume that a zero at two points proves perfect geometry over the entire face.

Step 4: Locate and Support the Workpiece

Clean the workpiece and the angle plate face before loading. Establish three functions in the fixture: support, location, and clamping. Supports carry the part and resist cutting load. Locators establish its position. Clamps hold it against those supports and locators.

Seat the workpiece against the upright face or against qualified parallels, buttons, blocks, or fixture stops. Use a bottom support for a heavy part rather than asking the clamps to carry its entire weight. If a casting has an uneven surface, use suitable adjustable supports or purpose-made pads, but ensure they cannot loosen under vibration.

Indicate the workpiece itself after it has been lightly clamped. This is essential because a correctly aligned angle plate does not guarantee that the workpiece datum is aligned. Sweep the specified datum, edge, bore, or previously machined surface and adjust the part until it meets the drawing requirement. Then establish the work offset with an edge finder, probe, or indicator using the actual datum scheme in the process plan.

Step 5: Clamp the Workpiece Correctly

Select clamps that fit the plate's slots or threaded grid without modifying the plate or using undersized fasteners. Position the clamping points over rigid, supported areas of the workpiece. Thin walls, unsupported flanges, and finished sealing faces may distort under concentrated pressure.

Apply clamping force toward the locators whenever possible. A strap clamp should normally slope slightly downward from its rear support toward the workpiece so its force helps seat the part. Place opposing clamps in a balanced pattern and tighten them progressively rather than fully tightening one side first. If the part is clamped off-center in a vise or auxiliary fixture, use a suitable spacer on the opposite side where the vise design requires balanced loading.

Do not increase leverage with an extension pipe or an oversized wrench. Excessive torque can stretch studs, damage threads, distort the workpiece, and overload the fixture. Use specified torque values when available. When no value is provided, clamping force must be determined by qualified shop practice, considering the fastener grade, thread engagement, part material, contact area, and expected cutting load.

After final tightening, indicate the workpiece again. A change in reading means the part shifted or distorted during clamping. Correct the support or clamping arrangement instead of compensating for a bad setup in the CNC program.

Step 6: Check Clearances and Perform a Safe Dry Run

Before cutting, rotate the spindle by hand where appropriate and confirm that the toolholder, cutter, spindle nose, coolant nozzles, and machine enclosure clear the angle plate, workpiece, clamps, studs, and supports. Check the entire approach and retract path, not only the programmed cutting line.

On a CNC mill, run the program above the workpiece using the machine's approved single-block, dry-run, graphics, or reduced-rapid procedure. On a manual mill, move the table through the full intended travel with the spindle stopped. Confirm that no clamp will become exposed after material is removed and that chips cannot pack under a critical support.

Use conservative cutting parameters on the first pass, especially when the setup has a tall workpiece or a large overhang. Listen for chatter and watch for movement. After a light trial cut, stop safely and inspect the machined feature. Recheck critical alignment if the operation generates high interrupted-cutting loads.

Common Angle Plate Setup Mistakes

Clamping Over Chips or Burrs

Contamination creates a false datum. The fixture may initially indicate correctly and then settle when cutting begins. Clean before assembly and again whenever a component is repositioned.

Aligning the Plate but Not the Workpiece

The plate is only an intermediate reference. The actual part datum must still be indicated or probed after clamping.

Using Too Much Clamp Force

More torque does not automatically produce a safer setup. Excessive force can distort a thin part or rotate the fixture as the mounting nuts are tightened.

Ignoring the Direction of Cutting Force

A setup that depends only on friction can slip if the cutter pulls the part away from its stops. Add positive locators and arrange the operation so cutting force is reacted by solid supports.

Leaving Too Much Overhang

Excessive distance between the cut and the nearest support reduces rigidity and promotes chatter. Move the part closer to the plate, add support, or revise the operation sequence.

Failing to Recheck After Tightening

Both the plate and the part can move as clamping force is applied. Indicate after final tightening, not only during the loose setup stage.

Frequently Asked Questions

Can an angle plate be used on both manual and CNC milling machines?

Yes. The basic principles of clean seating, axis alignment, positive location, balanced clamping, and clearance checking apply to both.

CNC setups require additional attention to programmed toolpaths, rapid moves, work offsets, tool changes, and unattended-cycle risks.

Should the angle plate be aligned before or after mounting the workpiece?

First align and secure the angle plate. Then mount, locate, and indicate the workpiece. Finally, recheck the part after full clamping.

Trying to correct angle plate error only by adjusting the component makes repeat setups less reliable.

How do I know whether the setup is accurate enough?

Use the part drawing, process plan, or inspection requirement as the acceptance standard. Measure alignment over a stated distance and use calibrated equipment appropriate to the tolerance.

Avoid applying an arbitrary universal indicator limit to every machining job.

Can I clamp directly to a cast surface?

Only when the surface is suitable for the required location and load. Rough cast surfaces can create unstable or concentrated contact.

Machined pads, packing blocks, soft pads, or purpose-built fixtures are often better choices, depending on the component.

What type of angle plate is best for milling?

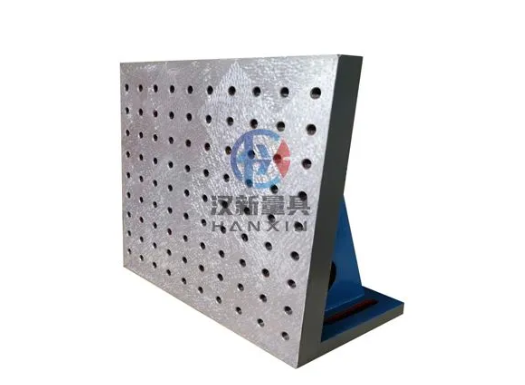

T-slotted or slotted angle plates provide flexible clamp positioning for varied components. Grid plates support repeatable modular setups, while webbed heavy-duty plates offer greater rigidity for larger workpieces.

The correct choice depends on:

• ◆  Workpiece size and weight

• ◆  Expected cutting force

• ◆  Required machining accuracy

• ◆  Mounting-hole pattern

• ◆  Machine table capacity

• ◆  Available working envelope

• ◆  Cutter and spindle clearance

• ◆  Production quantity

How should a large angle plate be lifted onto a milling machine?

Follow the angle plate and machine manufacturers’ lifting instructions. Use approved lifting points, lifting equipment, and slings rated for the total load.

Never lift a heavy angle plate by its T-slots unless those slots are specifically approved as lifting points. Keep personnel clear of suspended loads and protect the machine table during positioning.

How often should an angle plate be inspected?

Inspect the plate visually before every setup. Periodically verify its flatness, squareness, and relevant mounting features according to the shop’s quality system, usage frequency, operating environment, and accuracy requirements.

The plate should also be inspected after a crash, overload, visible impact, corrosion, or an unexpected change in machining results.

Final Setup Principle

A reliable milling setup creates a continuous load path: the cutter pushes on the workpiece, the workpiece pushes against solid locators and supports, the supports transfer the load into the angle plate, and the angle plate transfers it into the machine table.

Clean surfaces establish the geometry. Careful indication confirms it. Balanced clamping preserves it.

Before starting production, remember the sequence:

1. Clean the machine table and angle plate.

2. Inspect the plate and mounting hardware.

3. Position and loosely secure the plate.

4. Align the reference face with the required machine axis.

5. Tighten the mounting hardware progressively.

6. Recheck the plate after final tightening.

7. Support, locate, and clamp the workpiece.

8. Indicate the actual workpiece datum.

9. Verify tool, clamp, and spindle clearance.

10. Perform a controlled dry run and trial cut.

Following this sequence will make an angle plate setup more accurate, repeatable, rigid, and secure.
