Modular Welding Table vs. Flat Table: Which Is Better for Welding and Fabrication?

Choosing between a modular welding table and a conventional flat welding table affects much more than the surface on which welding takes place. The table influences how parts are positioned, how quickly a new job can be set up, how consistently an assembly can be reproduced and how much time is spent building temporary fixtures.

The two terms can also cause confusion. A modular welding table must still provide a flat reference surface. In this comparison, a “flat table” means a traditional solid-top or plain-top welding table without a standardized grid of fixture holes or T-slots.

Neither design is automatically better for every workshop. A modular system is generally more suitable for variable assemblies, repeat production and precision fixturing. A plain flat table may be more economical for basic welding, large plate work and operations in which fixtures are permanently welded or temporarily tacked to the surface.

Understanding the differences helps fabricators select the right platform for their actual production process.

What Is a Modular Welding Table?

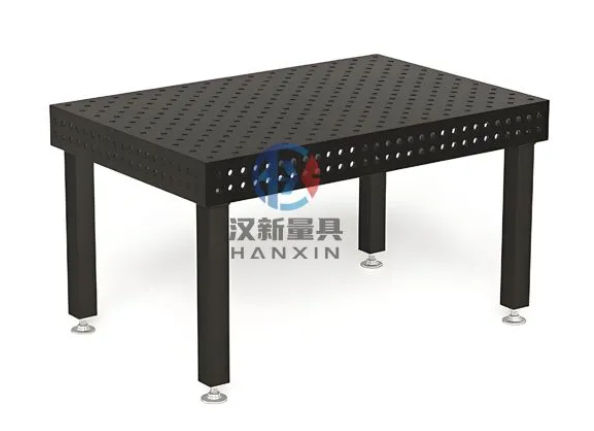

A modular welding table is a precision-machined work platform that incorporates a standardized positioning system. The most common version uses regularly spaced fixture holes across the top surface. Three-dimensional models also place holes on the four side faces, allowing components to be positioned horizontally, vertically or beyond the edge of the tabletop.

Clamps, stops, locating pins, squares, angle supports and extension blocks can be installed in these holes to create a reusable fixture. Instead of manufacturing a dedicated jig for every new product, the operator can rearrange the same set of tooling elements for different components.

Common configurations include:

· D16 systems with 16 mm fixture holes

· D28 systems with 28 mm fixture holes

· Two-dimensional tables with one primary working surface

· Three-dimensional welding tables with five machined working faces

· Hole-grid and T-slot modular systems

· Steel, cast iron and surface-treated table options

A 3D modular welding table is therefore not simply a perforated workbench. It is a positioning, clamping and assembly system built around a repeatable reference surface.

What Is a Traditional Flat Welding Table?

A traditional flat welding table normally has a continuous steel or cast iron top without a standardized modular fixture grid. The surface provides a stable base for laying out parts, tack welding, grinding, cutting and general fabrication.

Workpieces may be held with C-clamps, magnetic squares, temporary stops or custom fixtures. In many workshops, operators tack temporary brackets directly to the tabletop and grind them off after the job is complete.

A heavy flat welding table can be extremely rigid and suitable for large structures. Its simplicity also makes it practical for work where precise reusable positioning is not a major requirement.

However, flatness alone does not create a fixturing system. The table can provide a reference plane, but the fabricator must still establish dimensions, angles and stop positions using separate measuring and holding methods.

Modular Welding Table vs. Flat Table: Quick Comparison

1. Fixturing Flexibility and Setup Time

The most important difference is how workpieces are held.

On a plain flat table, an operator typically measures the component location, clamps the parts against a square or stop, verifies the dimensions and then tack welds the assembly. If the next product has a different shape, much of the setup process must be repeated.

A modular welding fixture table provides predefined attachment points. Stops and angle elements can be installed at known positions, while clamps can be placed close to the workpiece. Once a useful fixture has been established, the operator can record the hole coordinates, take a photograph or prepare a layout sheet for future production.

This can shorten setup time for:

· Frames and machine bases

· Doors, gates and railings

· Cabinets and sheet metal assemblies

· Vehicle components

· Pipe and tube structures

· Repeated small-batch products

For a workshop that makes only a few large, simple weldments, this advantage may not justify the additional tooling cost. For high-mix production or recurring orders, reduced setup time can become one of the largest sources of savings.

2. Accuracy and Repeatability

A flat table provides a reference plane, but it does not automatically establish the location of each component. Operators still rely on tape measures, rulers, squares, gauges and temporary marks.

A modular table combines a machined reference surface with a fixed fixture pattern. Positioning elements can be returned to the same locations during later production runs. This improves repeatability between the first assembly and subsequent assemblies.

However, the table cannot compensate for every production variable. Final accuracy also depends on:

· Table flatness and structural rigidity

· Fixture condition

· Clamp force and clamp location

· Part tolerances

· Joint gaps

· Welding sequence

· Heat input

· Operator technique

It is therefore more accurate to say that a modular table provides a repeatable fixturing foundation. It does not guarantee a distortion-free weldment by itself.

3. Controlling Movement and Welding Distortion

Welding causes localized heating and cooling. The resulting thermal contraction can pull an assembly out of square or change its dimensions.

Both table types can help control movement if the workpiece is properly supported and clamped. The modular system has an advantage because stops, clamps and support points can be placed around the assembly without welding permanent fixtures to the table.

Nevertheless, more clamping is not always better. Excessive restraint may lock stress into the weldment or cause it to move after the clamps are released. Fabricators must still plan:

· Tack weld size and spacing

· Weld sequence and direction

· Balanced welding on opposite sides

· Appropriate clamp force

· Pre-set or shrinkage allowance when required

· Cooling intervals for heat-sensitive assemblies

The table is one part of the distortion-control strategy, not a substitute for correct welding procedure.

4. Horizontal and Vertical Fabrication

A conventional flat table works well when most of the assembly can be positioned in one horizontal plane. Vertical members require angle plates, temporary brackets or separately fabricated supports.

A 3D modular welding table offers both top and side working surfaces. Squares, U-shaped blocks, L-shaped blocks and extension components can be used to position parts at 90 degrees or raise them above the main surface.

This is particularly useful for box structures, machine frames, brackets, cabinets and assemblies with components located in different planes.

The five-sided design can also improve access beneath or beside the workpiece. However, access still depends on the component geometry and fixture arrangement. Clamps should be positioned so that they do not block the welding torch or prevent inspection of the joint.

5. Usable Surface and General Fabrication Work

A solid-top table provides a continuous surface. This is convenient for laying out sheet metal, supporting small loose parts and performing general workshop tasks.

Fixture holes on a modular table may allow slag, dust and small components to fall through the surface. They also require operators to protect the holes from damage and keep them free of debris.

For extensive plasma cutting, gouging or heavy grinding, a dedicated cutting table may be more appropriate than either type of precision welding table. Repeated cutting directly over a machined fixture surface can damage the tabletop and reduce positioning accuracy.

A flat table may therefore be more practical when the surface is treated as a general fabrication bench rather than a precision fixture reference.

6. Load Capacity and Structural Rigidity

It is a mistake to assume that every flat table is stronger than every modular table, or that every modular table is more precise. Load capacity depends on the complete construction, including:

· Tabletop material and thickness

· Internal ribs or reinforcements

· Frame design

· Leg quantity and spacing

· Table size

· Point-load location

· Distributed load

· Floor condition and leveling

A thick, ribbed cast iron welding platen may support very heavy workpieces. A properly designed D28 modular table can also be suitable for medium- and heavy-duty fabrication.

Buyers should ask separately about maximum distributed load and maximum point load. A table capable of supporting a heavy load spread over its full surface may not support the same weight concentrated in a small area.

7. Steel vs. Cast Iron Work Surfaces

Both modular and traditional welding tables can be manufactured from steel or cast iron.

Steel tables offer strength, toughness and suitability for general industrial fabrication. Cast iron tables are valued for rigidity, vibration damping and reduced weld-spatter adhesion under suitable conditions.

Material alone should not determine the purchase. Buyers should also evaluate:

· Surface machining

· Flatness tolerance

· Hardness

· Stress-relief process

· Rib structure

· Surface treatment

· Repairability

· Fixture compatibility

For modular systems, surface treatments such as nitriding may improve wear resistance and make spatter removal easier. The actual benefit depends on treatment quality, base material and working conditions.

8. Initial Price vs. Total Cost of Ownership

A plain flat table often has a lower initial cost because it does not require a precision hole system and a large fixture package. For occasional welding or simple one-off work, this may be the most economical solution.

A modular table requires investment in the table and compatible tooling. The financial comparison should therefore consider more than the purchase price.

A useful calculation is:

Payback period = Additional modular system cost ÷ Monthly setup, fixture and rework savings

Potential savings may include:

· Fewer dedicated jigs

· Shorter setup and changeover time

· Lower measurement time

· Reduced rework

· Faster repeat orders

· Reuse of clamps and positioning elements

· Less grinding after removing temporary welded stops

If the shop rarely changes setups and already has an effective dedicated fixture, the payback may be slow. If the production mix changes frequently, a reusable modular system may provide a much lower long-term cost.

When Should You Choose a Modular Welding Table?

A modular welding table is generally the better choice when:

· The workshop produces many different assemblies.

· Jobs return in small or medium batches.

· Dimensional repeatability is important.

· Workpieces require vertical or multi-plane positioning.

· Dedicated jigs are expensive or occupy too much storage space.

· Setup and changeover time limit production capacity.

· The table will also be used for assembly and inspection.

· Future product designs are likely to change.

For smaller components and lighter fixtures, a D16 system may provide convenient fixture spacing and handling. For larger workpieces, structural frames and heavier clamping requirements, a D28 system is usually the more appropriate starting point. The final selection must still be based on actual load, table dimensions and fixture forces.

When Is a Flat Welding Table the Better Choice?

A traditional flat table may be more practical when:

· Most jobs are simple one-off fabrications.

· Large sheets need uninterrupted surface support.

· Dimensional tolerance requirements are moderate.

· Operators prefer to tack temporary fixtures to the table.

· The table is used for rough fabrication, grinding and repair work.

· The production process already uses dedicated jigs.

· The budget does not justify a complete modular fixture system.

· Extremely large workpieces require a custom welding platen.

In these situations, a heavy and accurately machined flat heavy-duty welding table can provide the stability needed without adding fixtures that may rarely be used.

Can a Workshop Use Both Types?

Yes. Many fabrication shops benefit from a mixed arrangement.

A modular table can be reserved for accurate frames, repeated products and complex assemblies. A plain flat table can handle rough welding, plate work, grinding and processes that could damage a precision fixture surface.

Another option is to combine a basic table with removable fixture plates, angle blocks or modular extensions. This creates some positioning flexibility without converting every workstation into a complete 3D system.

Questions to Ask Before Buying

Before selecting either table, buyers should provide the manufacturer with the following information:

1. Maximum workpiece length, width and height

2. Maximum total weight and expected point loads

3. Required dimensional tolerance

4. One-off, batch or repeat-production frequency

5. Typical component shapes and joint locations

6. Horizontal-only or three-dimensional positioning requirements

7. Preferred hole system, such as D16 or D28

8. Required clamps, stops, squares and support blocks

9. Steel, cast iron or surface-treated table preference

10. Fixed, adjustable or mobile base requirement

11. Available workshop floor space

12. Need for future table expansion

The correct table is the one that supports the complete workflow, not simply the one with the thickest top or the greatest number of fixture holes.

Frequently Asked Questions

Is a modular welding table always more accurate?

Not automatically. It provides more repeatable locating and clamping positions, but final accuracy also depends on table flatness, fixture quality, part tolerance, welding heat and operator procedure.

Is a flat welding table suitable for production welding?

Yes. It can be effective for stable product designs that use dedicated fixtures. Modular tables become more advantageous when products and fixture layouts change frequently.

Can I drill fixture holes into an existing flat table?

It is possible, but producing an accurate modular pattern requires controlled machining, consistent hole geometry and sufficient tabletop thickness. Randomly drilled holes may accept clamps but will not necessarily provide the repeatability of a precision-machined fixture system.

Does a modular table eliminate welding distortion?

No. Secure and repeatable clamping helps control movement, but heat input, weld sequence, joint design and residual stress must still be managed.

Is D16 or D28 better?

D16 is generally suited to smaller parts, lighter fabrication and compact fixtures. D28 is commonly selected for larger workpieces, heavier clamps and industrial structural fabrication. Load data and actual workpiece geometry should be checked before selection.

Conclusion

The decision between a modular welding table and a traditional flat table should be based on production variability, required repeatability, workpiece geometry and total setup cost.

Choose a modular welding table when fast changeovers, reusable fixturing and three-dimensional positioning are important. Choose a plain flat table when the work is simple, large, highly customized or better suited to permanent fixtures and uninterrupted surface support.

For manufacturers handling both precision assemblies and rough fabrication, using the two table types for different operations may provide the most efficient solution. HANXIN supplies steel and cast iron welding table configurations, including D16 and D28 modular systems, for different workpiece sizes, fixture requirements and production environments.
