Choosing between a T-slotted, slotted, and plain angle plate is mainly a question of workholding flexibility, rigidity, setup frequency, and budget. A T-slotted angle plate is usually the best choice for repeat production and fixtures that must be repositioned frequently. A conventional slotted angle plate offers practical, lower-cost clamping for general machining. A plain angle plate provides the most uninterrupted reference surface and is often preferred for inspection, layout, or dedicated fixtures.
The three types may look similar because each provides two working faces arranged at approximately 90 degrees. However, the face design changes how a part can be mounted, how quickly a setup can be adjusted, and how much usable contact area is available. This guide compares their construction, advantages, limitations, and ideal applications so that machine shops and industrial buyers can specify the right angle plate for milling, drilling, grinding, inspection, and assembly.
An angle plate is a workholding and reference tool used to support a component vertically or at a fixed right angle to a machine table or inspection surface. One face is mounted or clamped to the table, while the second face supports the workpiece, fixture, vise, or subplate.
Most industrial angle plates are made from stabilized cast iron because the material combines rigidity, vibration damping, machinability, and dimensional stability. Ribbed or webbed construction may be used to improve stiffness without making the component completely solid. Steel angle plates are also available where impact resistance, a compact section, or a specific tooling requirement makes steel more suitable.
An angle plate is not automatically accurate enough for every operation. Its squareness, flatness, parallelism, material grade, stress-relieving process, and finished condition must match the job. A general machined angle plate and a precision-ground or hand-scraped inspection angle plate should not be treated as interchangeable.
| Feature | T-Slotted Angle Plate | Slotted Angle Plate | Plain Angle Plate |
|---|---|---|---|
| Working-face design | Undercut T-slots accept compatible T-nuts | Straight, cored, or open-ended through-slots accept bolts or clamps | Solid, uninterrupted face with no regular clamping slots |
| Setup flexibility | Highest | Medium to high | Low unless used with external clamps or custom holes |
| Repositioning speed | Fast for frequently changed fixtures | Fast for basic bolt-through setups | Slower for varied workpieces |
| Face contact area | Reduced by T-slots | Reduced by open slots | Maximum continuous contact area |
| Typical use | CNC fixtures, repeat production, vises, subplates, modular setups | General milling, drilling, maintenance, one-off work | Inspection, marking out, grinding, dedicated fixtures |
| Hardware | T-nuts, studs, step blocks, strap clamps | Bolts, studs, washers, strap clamps | External clamps, magnetic holding, or application-specific tapped holes |
| Relative cost | Usually highest | Moderate | Often lowest in a comparable size and accuracy class |
| Best buying reason | Maximum adjustability and repeat setup efficiency | Versatile clamping without T-slot complexity | Simple, rigid reference surface with maximum usable face area |
A T-slotted angle plate has one or more machined T-shaped channels, usually on its vertical working face. The narrow opening retains the head of a T-nut in the wider undercut below. A stud or bolt can then be positioned at different points along the slot, allowing clamps, vises, fixtures, and subplates to be mounted without drilling the working face.
This design is especially useful when a shop handles a changing mix of components. Operators can move the clamping hardware along the slot, adjust the workpiece position, and reuse the plate for another setup. T-slotted models are commonly used as vertical fixture bases in milling operations; industrial products may also offer machined profiles or custom slots on both the vertical and base faces.
◆ Flexible fixture positioning: T-nuts can move along the channel, providing more possible mounting locations than a small number of fixed holes.
◆ Faster changeovers: A reusable T-slot pattern helps reduce the need to drill a dedicated plate for every new part.
◆ Suitable for modular workholding: The plate can accept compatible clamps, stops, vises, and fixture elements.
◆ Better for repeat production: Once the location of stops and fixtures is documented, an established setup can be rebuilt more consistently.
The extra machining normally increases purchase cost. T-slots also create chip pockets and reduce the uninterrupted bearing area on the face. Hardware compatibility must be confirmed carefully: slot opening, slot depth, neck width, center spacing, and T-nut dimensions all matter. An apparently suitable T-nut can bottom out or contact the slot incorrectly if only the nominal bolt size is checked.
Choose a T-slotted angle plate when setup flexibility and changeover efficiency are more important than obtaining the largest possible uninterrupted reference face.

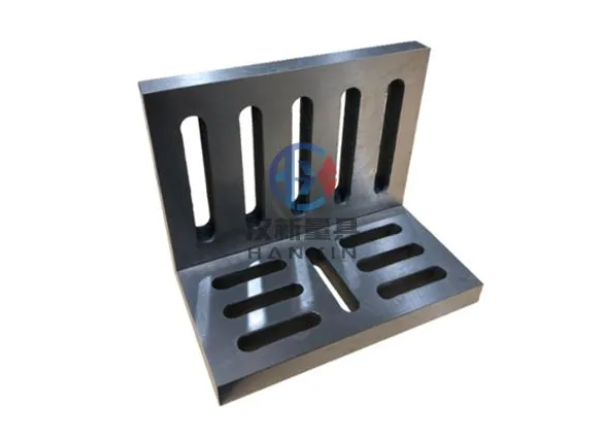

A slotted angle plate normally uses straight through-slots, cored slots, or open-ended slots rather than an undercut T-profile. Bolts, studs, clamps, and washers pass through or engage with these openings to secure a workpiece or attach the plate to a machine table.
This is the practical middle option. It offers more mounting freedom than a plain plate but is generally simpler and less expensive than a precision T-slotted model. Heavy webbing or gussets can help resist deflection, while open-ended slots may make it easier to insert hardware from the side. Commercial slotted plates are specifically sold for setting work at 90 degrees to a machine table, and larger designs may use multiple slots to expand clamping options.
◆ Straightforward clamping: Standard bolts and strap clamps can often be used without specialized T-nuts.
◆ Good general-purpose versatility: The same plate can support drilling, milling, assembly, and maintenance work.
◆ Lower complexity: Straight slots are easier to clean and visually inspect than deep undercut channels.
◆ Useful for one-off jobs: Operators can adapt a setup without investing in a complete modular fixture system.
Repositioning is limited by slot length, direction, and location. A bolt may need access from the rear or open end, which can be difficult when the plate is close to a machine enclosure or another fixture. Wide slots also remove face area, so narrow or irregular components may require a subplate.
Choose a slotted angle plate for general shop work when you need adaptable bolt-through clamping but do not need a full T-slot system.
A plain angle plate has a continuous working face without a regular pattern of T-slots or elongated through-slots. It provides a broad reference and support surface with fewer interruptions. Depending on its design, the base may still include mounting provisions, and a user may secure the work with external clamps, magnetic workholding, a separate fixture plate, or approved custom holes.
Plain angle plates are particularly attractive for inspection, layout, surface grinding, and dedicated production fixtures. A continuous face supports small components and gives a dial indicator, height gauge, or workpiece more freedom from slot edges and recesses. Manufacturers distinguish plain webbed angle plates from slotted and T-slotted versions, confirming that the face configuration is an intentional part of the product selection.
◆ Maximum uninterrupted support: Small, thin, or irregular parts are less likely to bridge an opening.
◆ Easier cleaning: There are fewer recesses in which chips, abrasive particles, or coolant residue can collect.
◆ Suitable as a reference face: The simple surface is convenient for inspection and marking-out work.
◆ Good foundation for dedicated tooling: A fixture builder can add only the holes and locating features required for a controlled application, provided modification is permitted.
A plain face offers the least built-in clamping flexibility. Frequent product changes may require additional clamps, a sacrificial subplate, or multiple dedicated fixtures. Drilling or tapping the plate without a controlled plan can damage accuracy, introduce burrs, create stress, or make future calibration more difficult.
Choose a plain angle plate when surface continuity and reference quality matter more than fast, universal clamping.
For milling, the best type depends on production style rather than on the machine alone.
A T-slotted angle plate is usually the strongest choice for repeatable vertical machining of different part sizes. It gives the fixture designer room to locate clamps away from the cutting path and reposition hardware as the job changes. It is also convenient when mounting a vise or subplate vertically.
A slotted angle plate is often sufficient for repair shops, toolrooms, and low-volume production. If the workpiece has accessible bolt locations and the setup does not change constantly, straight slots provide an economical solution.
A plain angle plate works well when the component is held by a dedicated fixture or when the plate serves primarily as an accurate vertical reference. It may also be preferable for small workpieces that require full-face support.
In every milling setup, check cutter clearance, clamp position, bolt engagement, and the direction of cutting force. The plate should be mounted so that the load is transferred into the machine table and supported by the plate's rigid section rather than relying on a lightly clamped overhang.
For inspection, a precision plain angle plate is often the most convenient option because its uninterrupted surface can support parts and measuring instruments without interference from slots. However, a slotted or T-slotted model may be better when a heavy or irregular component must be restrained securely during measurement.
Accuracy grade matters more than slot style. Before purchasing, request the manufacturer's inspection method and tolerance report. Verify at least:
◆ squareness between the base and upright face;
◆ flatness of each reference face;
◆ parallelism of relevant edges or mounting surfaces;
◆ whether tolerances apply to a machined, ground, or scraped finish;
◆ the temperature and support conditions used during inspection.
Do not assume that a large casting has inspection-grade accuracy simply because it is heavy.
Use the following sequence to avoid overbuying or choosing a plate that cannot accept your hardware.
Decide whether the plate will be used mainly for milling, drilling, grinding, inspection, welding, or assembly. Machining loads, measurement requirements, and contamination risks are different.
Review the smallest and largest parts, their center of gravity, available clamp lands, and areas that the cutter must reach. If clamp locations change frequently, T-slots usually provide the greatest flexibility. If bolt locations are predictable, standard slots may be enough.
The plate must support the part without creating excessive overhang. Check the height, width, base depth, wall thickness, rib arrangement, and machine-axis travel. Also confirm that the completed assembly fits beneath the spindle and inside the enclosure.
For a T-slotted plate, specify the slot opening, undercut width, depth, pitch, and compatible T-nut or stud size. For a slotted plate, confirm slot width, length, edge distance, and whether hardware can be inserted after the plate is mounted. Supplier terminology varies, so approve a dimensioned drawing rather than ordering by the words “slotted” or “T-slotted” alone.
Choose a tolerance class appropriate to the process. General fabrication does not require the same squareness as precision grinding or metrology. Paying for a higher grade only makes sense if the machine, environment, setup method, and inspection equipment can preserve and verify that accuracy.
Compare casting material, rib design, section thickness, total weight, stress relief, and the manufacturer's allowable load guidance. A larger face is not necessarily stiffer if its section is too light or the load is applied far from the base.
One frequent mistake is choosing the largest number of slots without checking whether those slots align with the actual part. More slots can improve flexibility, but they also reduce continuous contact area and create more surfaces to clean.
Another mistake is focusing on purchase price while ignoring setup time. A T-slotted plate may cost more initially but can be economical in a high-mix shop where operators rebuild fixtures every week. Conversely, paying for T-slots brings little benefit when the plate will remain inside one dedicated fixture for years.
Buyers also sometimes compare accuracy statements that use different reference lengths or finishing methods. A squareness tolerance stated per 300 mm cannot be compared directly with a total tolerance unless the plate size and inspection convention are understood. Ask for the actual drawing and inspection standard before placing a bulk or custom order.
Choose a T-slotted angle plate for high-mix machining, reusable fixtures, frequent setup changes, and modular workholding. Choose a slotted angle plate for economical, general-purpose clamping in milling, drilling, repair, and low-volume production. Choose a plain angle plate for inspection, layout, full-face support, or a dedicated fixture where universal slots are unnecessary.
There is no universally superior design. The correct angle plate is the one that supplies enough rigidity and accuracy while placing secure clamping points where your parts actually need them. Before ordering, send the supplier a workpiece drawing, expected load, machine-table details, required tolerance, and preferred hardware standard. That information is more valuable than selecting a type by name alone.
Not necessarily. Slot design describes the mounting system, not the accuracy grade. Either type can be machined, ground, or scraped to different tolerances. Compare documented squareness, flatness, parallelism, and inspection conditions.
It may be possible for a dedicated fixture, but modification should be reviewed with the manufacturer or a qualified tooling engineer. Unplanned drilling can create burrs, weaken a ribbed section, interfere with future clamping, or affect the reference surface.
No. Metric and imperial systems, slot profiles, pitches, and nut dimensions vary. Some manufacturers reference standards such as DIN 650, but compatibility still needs to be confirmed from the plate and hardware drawings. One T-slotted product range, for example, lists several slot sizes rather than one universal profile.
Not for every milling operation. A machined plate may be adequate for general work, while precision finishing may be justified for close-tolerance setups. The choice should be based on the part tolerance, machine capability, setup stack-up, and verification method.
