At Hanxin, we pride ourselves on our unwavering commitment to excellence in the field of precision engineering. Through extensive industry experience and a strong dedication to quality, we have established ourselves as a leading provider of industrial fixtures and components, with angle plates being a standout product in our wide range.
At Hanxin, we also take pride in our unwavering commitment to excellence in precision engineering. Our experience and focus on quality have positioned us as a trusted supplier of industrial fixtures and components, with angle plates representing one of the standout products in our range. These essential tools play a critical role in ensuring accuracy and efficiency in manufacturing processes, reflecting our dedication to delivering reliable, high-quality solutions to our clients. Whether used for machining, inspection, or assembly, our angle plates are designed to meet the rigorous demands of modern industry, demonstrating that at Hanxin, precision is not merely a goal—it is our promise.

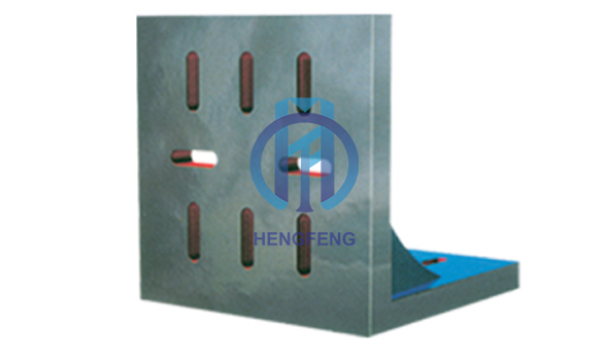

Angle plates are indispensable tools in precision engineering, used to hold workpieces at precise angles for machining, inspection, or assembly processes. These robust tools are designed to support complex manufacturing tasks, enabling engineers and machinists to achieve accurate angles and reliable alignment with ease.
At Hanxin, we understand that every project has unique requirements. That is why we offer a diverse lineup of angle plates designed to accommodate a wide range of machining needs:
■ M/C Grid Pattern ANGLE PLATE: Manufactured from high-quality Cast Iron FC300 and normalized for enhanced durability, the M/C Grid Pattern ANGLE PLATE is precisely designed for use with both HMC and VMC. It features alignment bushings and threaded inserts at each hole, allowing seamless compatibility with standard jig components, streamlining setup, and improving overall precision.
■ M/C Plain ANGLE PLATE: Constructed from durable Cast Iron FC300 and normalized to ensure long service life, the M/C Plain ANGLE PLATE is intended for HMC/VMC applications. This plate allows users to create custom hole patterns, providing exceptional versatility and accuracy for a wide range of machining tasks.
■ M/C T-Slots ANGLE PLATE: Made from heat-treated Cast Iron FC300 for increased strength and durability, the M/C T-Slots ANGLE PLATE is engineered for optimal performance in HMC/VMC environments. Strategically positioned T-slots in two directions enable easy integration with standard jig components, significantly enhancing machining flexibility.
■ MC NARROW ANGLE PLATE: Produced from Cast Iron FC300 and normalized through heat treatment to ensure lasting durability, the MC NARROW ANGLE PLATE is designed specifically for HMC/VMC applications. Its compact structure is well suited for accommodating specialized jig hole patterns, maximizing flexibility and precision during machining operations.
■ MC NARROW ANGLE PLATE with Grid: Expertly manufactured from Cast Iron FC300 for HMC/VMC use, the MC NARROW ANGLE PLATE with Grid features a precision grid pattern complete with alignment bushings and threaded inserts. This configuration enhances adaptability and machining accuracy, making it an essential tool for achieving highly precise results.
Angle plates are versatile tools used across a wide range of industries, including aerospace, automotive, and electronics. Their applications extend from positioning workpieces at precise angles for machining operations to serving as fixtures in quality assurance and inspection processes.
Choosing Hanxin for your Cast iron angle plates means selecting a partner dedicated to precision and quality. Our angle plates are manufactured using high-quality materials, ensuring durability and reliability for a wide variety of applications. Below are several reasons why customers trust Hanxin for their precision engineering needs:
■ Expertise: With years of industry experience, our team has the knowledge and technical capability to provide solutions that meet and exceed customer expectations.
■ Quality Assurance: Our commitment to quality is reflected in every product we deliver, ensuring consistent performance and reliability for your projects.
■ Customization: We recognize that every project has unique requirements. That is why we offer customized solutions tailored to meet your specific needs.
At Hanxin, we are more than just suppliers—we are your partners in precision engineering. Our angle plates are developed with your manufacturing success in mind, delivering the precision, reliability, and quality required to remain competitive in today’s demanding industrial environment.
Discover the potential of Hanxin angle plates to enhance your manufacturing processes. Explore our product range and learn more about our commitment to precision engineering excellence by visiting our website or contacting us directly.
